CVA-FS08
8" firestop radiation shield
•Use when a chimney passes through a floor or ceiling to keep any combustible materials from contacting the chimney pipe
•Made from galvalume with top flanges that ensure a proper fit into the framed opening
•Adjustable upper section extends from 11" to 19" to completely cover the framing

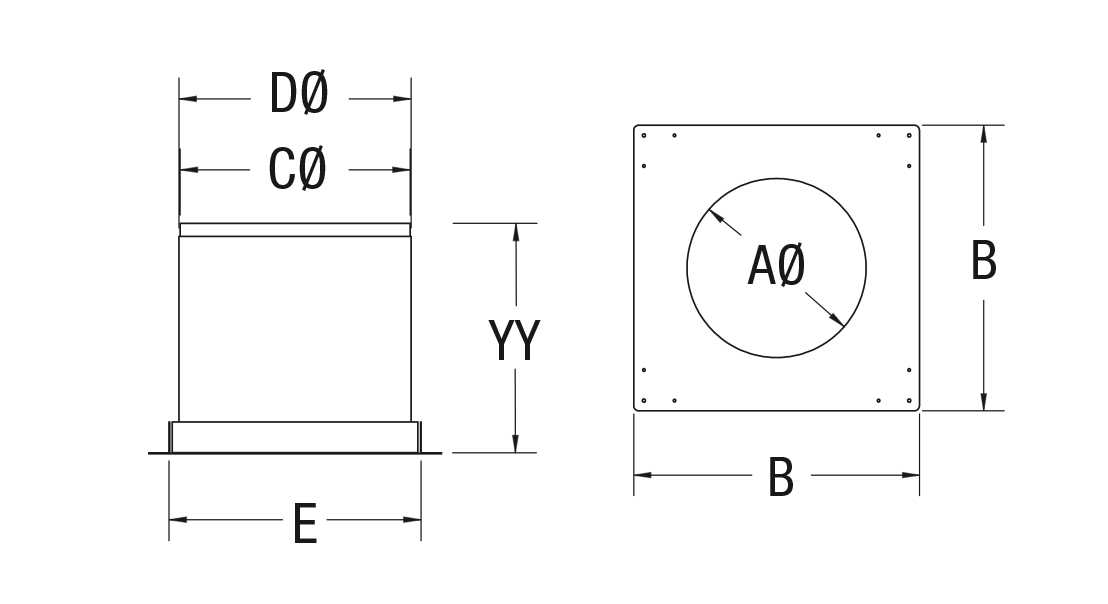

Dimensions
A | B | C | D | E | YY |
---|---|---|---|---|---|
10.8" | 16" | 13" | 13.1" | 14" | 11-19" |
