HES140
VB00023

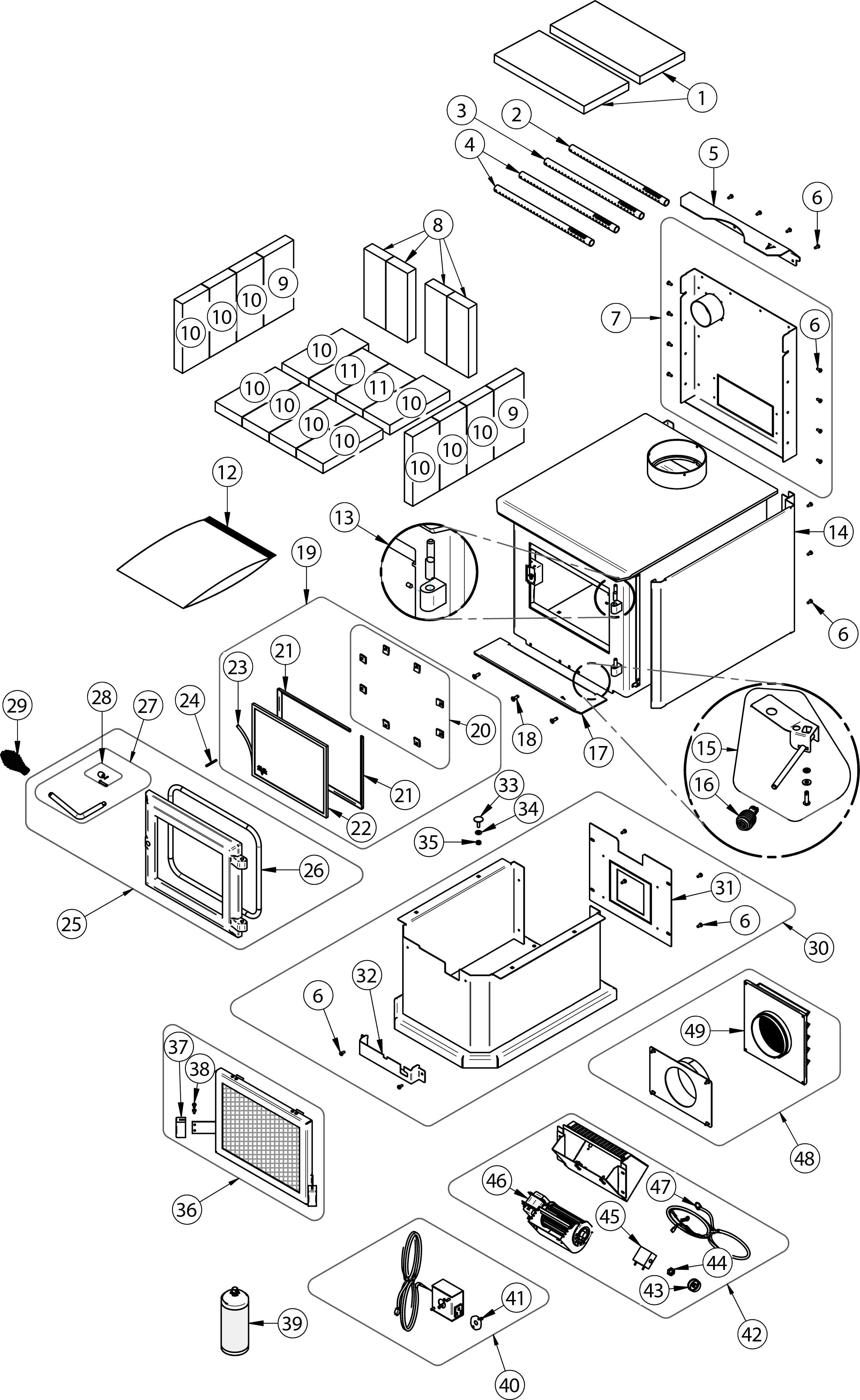

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | 21622 13 7/16" x 6 3/4" x 1" VERMICULITE BAFFLE 2 / appliance (sold individually) | USD $30.00 | ||
| 2 | PL66833 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $35.00 | ||
| 3 | PL66834 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $35.00 | ||
| 4 | PL66835 MIDDLE AND FRONT SECONDARY AIR TUBE 2 / appliance (sold individually) | USD $29.00 | ||
| 5 | PL74288 AIR DEFLECTOR 1 / appliance (sold individually) | USD $15.00 | ||
| 6 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 24 / appliance (sold individually) | USD $1.00 | ||
| 7 | SE74262 BACK HEAT SHIELD ASSEMBLY 1 / appliance (sold individually) | USD $100.00 | ||
| 8 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | ||
| 9 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $10.00 | ||
| 10 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | USD $10.00 | ||
| 11 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | USD $6.00 | ||
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 13 | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | USD $29.00 | ||
| 14 | PL74293 DECORATIVE PANEL 2 / appliance (sold individually) | USD $65.00 | ||
| 15 | SE74355 ASSEMBLY AIR CONTROL HATCH KIT 1 / appliance (sold individually) | USD $35.00 | ||
| 16 | 30734 BLACK COIL HANDLE 3/8" 1 / appliance (sold individually) | USD $3.00 | ||
| 17 | PL74289 ASH TRAY 1 / appliance (sold individually) | USD $35.00 | ||
| 18 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 3 / appliance (sold individually) | USD $2.00 | ||
| 19 | SE74272 HES 140 GLASS AND MOLDING KIT 1 / appliance (sold individually) | USD $145.00 | ||
| 20 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | ||
| 21 | PL74353 MOLDING FRAME 2 / appliance (sold individually) | USD $13.00 | ||
| 22 | SE74254 11 1/4'' X 9 5/8'' GLASS WITH GASKET 1 / appliance (sold individually) | USD $115.00 | ||
| 23 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $15.00 | ||
| 24 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | ||
| 25 | SE24352 VENTIS 1.4 DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | USD $175.00 | ||
| 26 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 27 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | USD $40.00 | ||
| 28 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 29 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 30 | SE74271 HES140 PEDESTAL ASSEMBLY 1 / appliance (sold individually) | USD $290.00 | ||
| 31 | PL74268 BACK OF THE BASE 1 / appliance (sold individually) | USD $20.00 | ||
| 32 | PL74354 DECORATIVE DASH 1 / appliance (sold individually) | USD $26.00 | ||
| 33 | 30536 LEVELING BOLT 1/4 - 20 x 1" 4 / appliance (sold individually) | USD $5.00 | ||
| 34 | 30185 BLACK WASHER 17/64" AA TYPE 4 / appliance (sold individually) | USD $1.00 | ||
| 35 | 30100 BLACK HEX NUT 1/4 - 20 4 / appliance (sold individually) | USD $1.00 | ||
| 36 | AC01420 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $160.00 | ||
| 37 | PL06728 AIR CONTROL HANDLE 2 / appliance (sold individually) | USD $20.00 | ||
| 38 | 30129 METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE 4 / appliance (sold individually) | USD $1.00 | ||
| 39 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 40 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $80.00 | ||
| 41 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | ||
| 42 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | USD $235.00 | ||
| 43 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 44 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 45 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 46 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | USD $180.00 | ||
| 47 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | ||
| 48 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $110.00 | ||
| 49 | 49028 5" WHITE AIR INTAKE TERMINATION 1 / appliance (sold individually) | USD $30.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
