HES350
VB00020

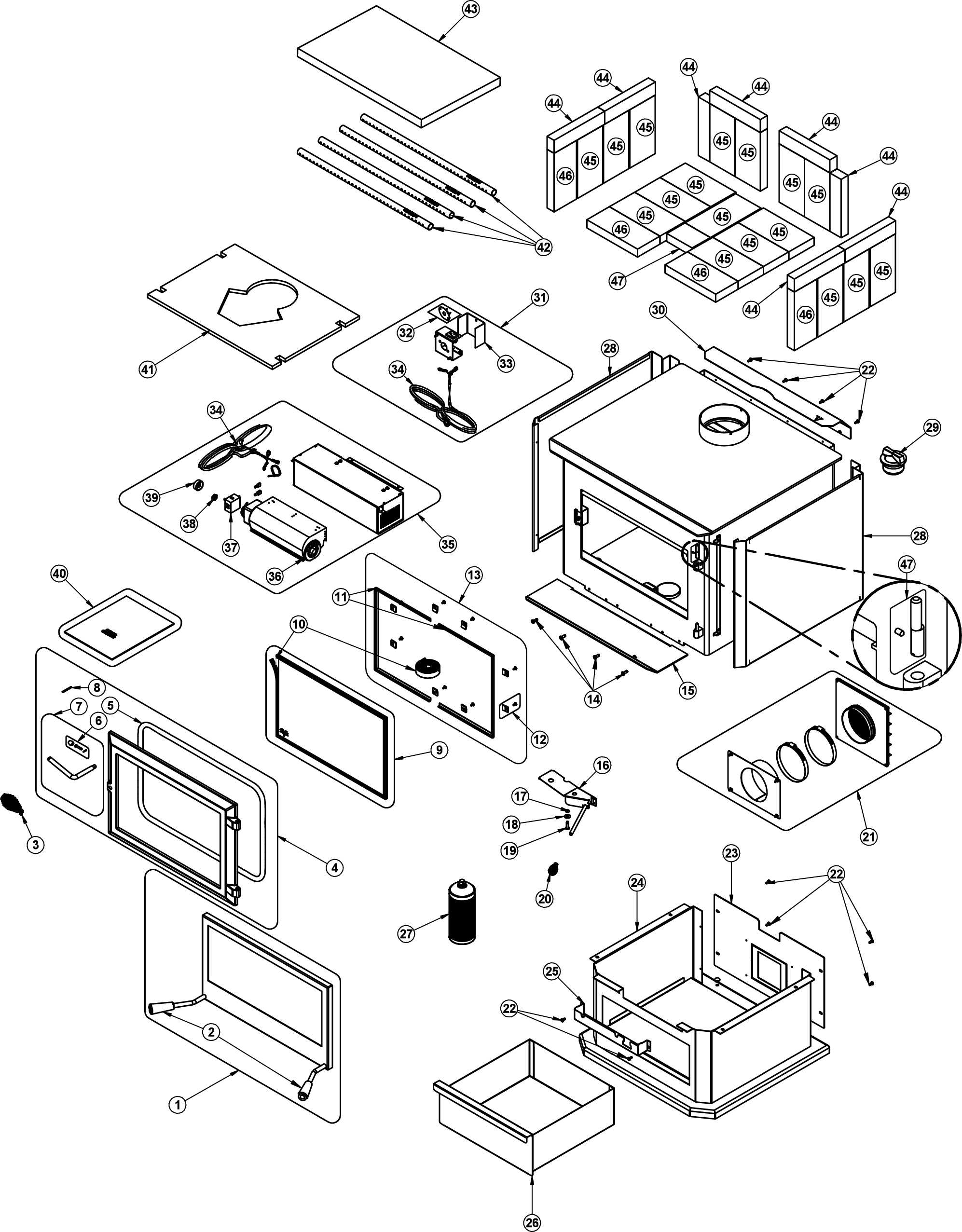

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC01281 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $180.00 | ||
| 2 | SE74166 HANDLE 30898 REPLACEMENT KIT 2 / appliance (sold individually) | USD $25.00 | ||
| 3 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 4 | SE24366 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | USD $235.00 | ||
| 5 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 6 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 7 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | USD $40.00 | ||
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | ||
| 9 | SE70978 19 9/16" x 12 1/8" GLASS WITH GASKET 1 / appliance (sold individually) | USD $170.00 | ||
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | USD $15.00 | ||
| 11 | PL70979 GLASS FRAME 2 / appliance (sold individually) | USD $15.00 | ||
| 12 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | ||
| 13 | SE70988 GLASS FRAME KIT 1 / appliance (sold individually) | USD $61.00 | ||
| 14 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 4 / appliance (sold individually) | USD $2.00 | ||
| 15 | PL70974 ASH SHELF 1 / appliance (sold individually) | USD $30.00 | ||
| 16 | SE70904 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $50.00 | ||
| 17 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 18 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 19 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | USD $1.00 | ||
| 20 | AC07866 1/4" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 21 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $110.00 | ||
| 22 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 10 / appliance (sold individually) | USD $1.00 | ||
| 23 | PL70823 PEDESTAL BACK PANEL 1 / appliance (sold individually) | USD $45.00 | ||
| 24 | SE70975 PEDESTAL BACK PANEL 1 / appliance (sold individually) | USD $325.00 | ||
| 25 | PL70774 AIR CONTROL COVER 1 / appliance (sold individually) | USD $45.00 | ||
| 26 | PL70838 ASH DRAWER 1 / appliance (sold individually) | USD $130.00 | ||
| 27 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 28 | PL70971 DECORATIVE PANEL 1 / appliance (sold individually) | -- | ||
| 29 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | USD $25.00 | ||
| 30 | PL70977 AIR DEFLECTOR 1 / appliance (sold individually) | -- | ||
| 31 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $80.00 | ||
| 32 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | ||
| 33 | PL05530-02 THERMODISC BOX (COVER) 1 / appliance (sold individually) | USD $15.00 | ||
| 34 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | USD $20.00 | ||
| 35 | SE53560 130 CFM BLOWER WITH VARIABLE SPEED CONTROL 1 / appliance (sold individually) | USD $300.00 | ||
| 36 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | USD $175.00 | ||
| 37 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 38 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 39 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 40 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 41 | 21564 C-CAST INSULATION TOP | 3.5 SERIE 1 / appliance (sold individually) | USD $150.00 | ||
| 42 | PL70864 SECONDARY AIR TUBE 4 / appliance (sold individually) | USD $50.00 | ||
| 43 | 21585 22" x 14" VERMICULITE BAFFLE 1 / appliance (sold individually) | USD $45.00 | ||
| 44 | PL36759 2" x 9" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | USD $10.00 | ||
| 45 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | USD $10.00 | ||
| 46 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | ||
| 47 | PL36760 3 1/4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | ||
| 48 | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | USD $29.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
