HE325
VB00018

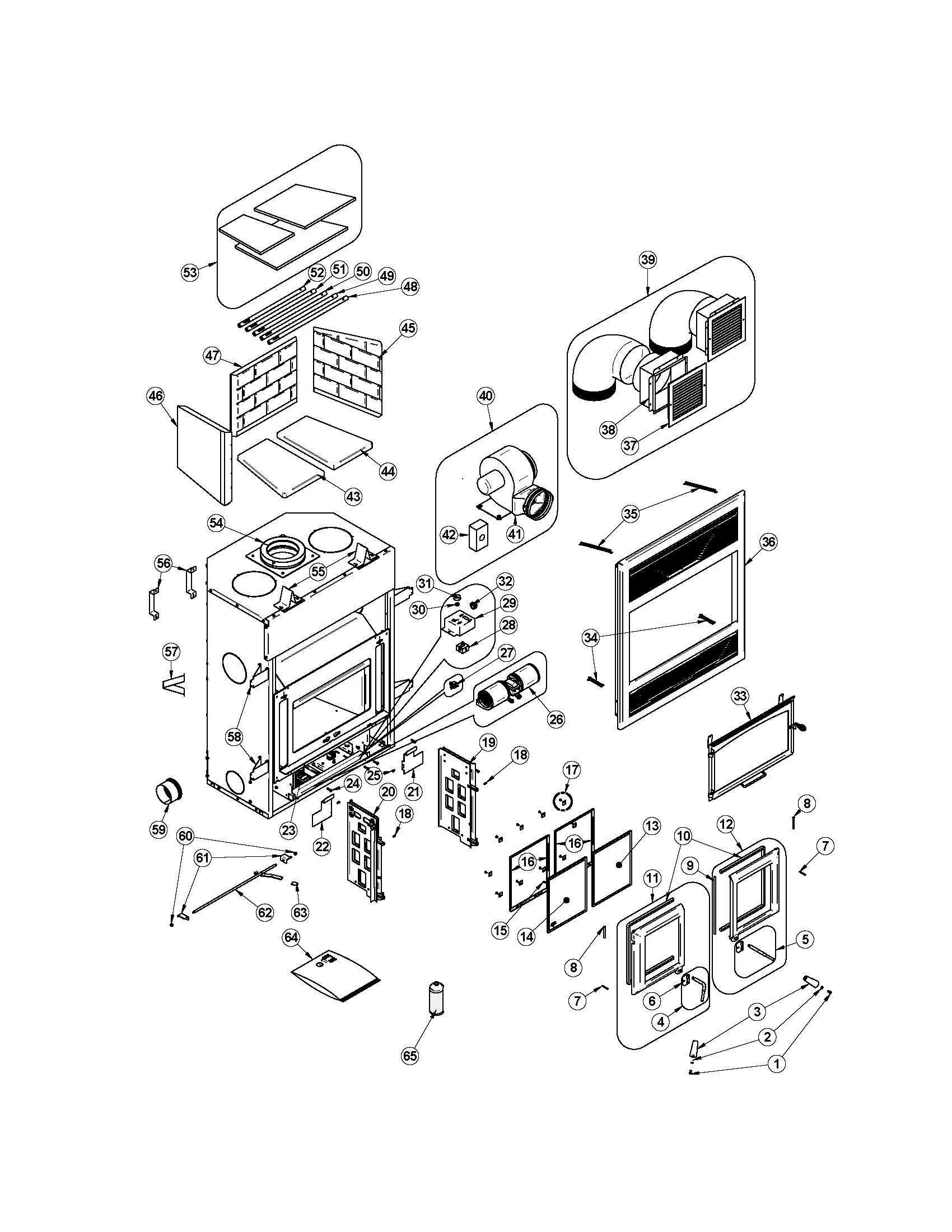

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 2 / appliance (sold individually) | USD $1.00 | ||
| 2 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 2 / appliance (sold individually) | USD $1.00 | ||
| 3 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | USD $15.00 | ||
| 4 | SE70409 LEFT HANDLE AND LATCH KIT 1 / appliance (sold individually) | USD $45.00 | ||
| 5 | SE70410 RIGHT HANDLE AND LATCH KIT 1 / appliance (sold individually) | USD $45.00 | ||
| 6 | SE36580 LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 7 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 2 / appliance (sold individually) | USD $2.00 | ||
| 8 | 30877 HINGE PIN 1/4"Ø X 2-1/2"L 2 / appliance (sold individually) | USD $5.00 | ||
| 9 | 40030 6 mm GASKET (PRICE FOR 1 LINEAR FOOT) 1 / appliance (sold individually) | USD $5.00 | ||
| 10 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 11 | SE24342 LEFT DOOR ASSEMBLY WITH GASKET AND HANDLE 1 / appliance (sold individually) | USD $290.00 | ||
| 12 | SE24341 RIGHT DOOR ASSEMBLY WITH GASKET AND HANDLE 1 / appliance (sold individually) | USD $315.00 | ||
| 13 | SE70001 REPLACEMENT GLASS WITH GASKET 10 5/16'' X 12 7/16'' 1 / appliance (sold individually) | USD $115.00 | ||
| 14 | SE70464 10 5/16" X 12 7/16" REPLACEMENT GLASS WITH GASKET AND LOGO 1 / appliance (sold individually) | USD $115.00 | ||
| 15 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $15.00 | ||
| 16 | PL70000 GLASS RETAINER TRIM 2 / appliance (sold individually) | USD $10.00 | ||
| 17 | SE63024 GLASS RETAINER WITH SCREWS KIT (10 UNITS) 1 / appliance (sold individually) | USD $15.00 | ||
| 18 | 30143 SOCKET SET SCREW #10-32 X 1/2" 2 / appliance (sold individually) | USD $1.00 | ||
| 19 | SE70479 RIGHT CHARIOT ASSEMBLY 1 / appliance (sold individually) | USD $200.00 | ||
| 20 | SE70477 LEFT CHARIOT ASSEMBLY 1 / appliance (sold individually) | USD $200.00 | ||
| 21 | PL70439 RIGHT PLUG FACEPLATE 1 / appliance (sold individually) | USD $12.00 | ||
| 22 | PL70425 LEFT PLUG FACEPLATE 1 / appliance (sold individually) | USD $12.00 | ||
| 23 | PL70483 ASH TRAY 1 / appliance (sold individually) | USD $20.00 | ||
| 24 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 4 / appliance (sold individually) | USD $1.00 | ||
| 25 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 2 / appliance (sold individually) | USD $1.00 | ||
| 26 | 44207 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | USD $275.00 | ||
| 27 | VA1150 THERMODISC F120-10F 1 / appliance (sold individually) | USD $60.00 | ||
| 28 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 29 | PL70113 TERMINAL COVER 1 / appliance (sold individually) | USD $10.00 | ||
| 30 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 31 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 32 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | USD $10.00 | ||
| 33 | AC01379 FIRESCREEN DOOR 1 / appliance (sold individually) | USD $250.00 | ||
| 34 | 30767 SPRING 1/2''Ø OUTSIDE X 8''L 2 / appliance (sold individually) | USD $10.00 | ||
| 36 | VBA1570 BLACK MODERN FACEPLATE 1 / appliance (sold individually) | USD $800.00 | ||
| 37 | 30540 HOT AIR GRAVITY KIT GRILL 2 / appliance (sold individually) | USD $75.00 | ||
| 38 | 30640 GALVANISED BOX FOR HOT AIR GRAVITY KIT 8" 2 / appliance (sold individually) | USD $80.00 | ||
| 39 | AC01375 TRADITIONAL HOT AIR GRAVITY KIT 1 / appliance (sold individually) | USD $400.00 | ||
| 40 | VA4460 FORCED AIR KIT 1 / appliance (sold individually) | USD $760.00 | ||
| 41 | 49091 BLOWER OUTLET ADAPTER 1 / appliance (sold individually) | USD $150.00 | ||
| 42 | 44131 SPEED CONTROL | 2.5 A 1 / appliance (sold individually) | USD $75.00 | ||
| 43 | 22353 LEFT FLOOR REFRACTORY STONE 1 / appliance (sold individually) | USD $95.00 | ||
| 44 | 22354 RIGHT FLOOR REFRACTORY STONE 1 / appliance (sold individually) | USD $95.00 | ||
| 45 | 22356 RIGHT REFRACTORY STONE 1 / appliance (sold individually) | USD $150.00 | ||
| 46 | 22355 LEFT REFRACTORY STONE 1 / appliance (sold individually) | USD $150.00 | ||
| 47 | 22357 REAR REFRACTORY STONE 1 / appliance (sold individually) | USD $150.00 | ||
| 48 | PL70107 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $55.00 | ||
| 49 | PL70407 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $45.00 | ||
| 50 | PL70408 MIDDLE SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $44.00 | ||
| 51 | PL70108 MIDDLE REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $40.00 | ||
| 52 | PL70109 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $40.00 | ||
| 53 | SE36511 RIGID CERAMIC BAFFLE KIT 2000 SERIE (3 PCES) 1 / appliance (sold individually) | USD $195.00 | ||
| 54 | CVA-AP06 6" stainless steel anchor plate 1 / appliance (sold individually) | -- | ||
| 55 | PL70453 TOP STAND-OFF 2 / appliance (sold individually) | USD $5.00 | ||
| 56 | PL70452 REAR STAND-OFF 2 / appliance (sold individually) | USD $5.00 | ||
| 57 | PL70424 SIDE REAR STAND-OFF 2 / appliance (sold individually) | USD $7.00 | ||
| 58 | PL70463 SIDE STAND-OFF 4 / appliance (sold individually) | USD $5.00 | ||
| 59 | PL63954 4" ADAPTOR 1 / appliance (sold individually) | USD $50.00 | ||
| 60 | 30220 FLANGED LOCKNUT 1/4-20 2 / appliance (sold individually) | USD $1.00 | ||
| 61 | PL70104 AIR INLET 2 / appliance (sold individually) | USD $4.00 | ||
| 62 | SE70440 AIR CONTROL ASSEMBLY 1 / appliance (sold individually) | USD $58.00 | ||
| 63 | 30556 AIR CONTROL FINISHING TIP 1 / appliance (sold individually) | USD $5.00 | ||
| 64 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 65 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
