HE275CF

VB00017

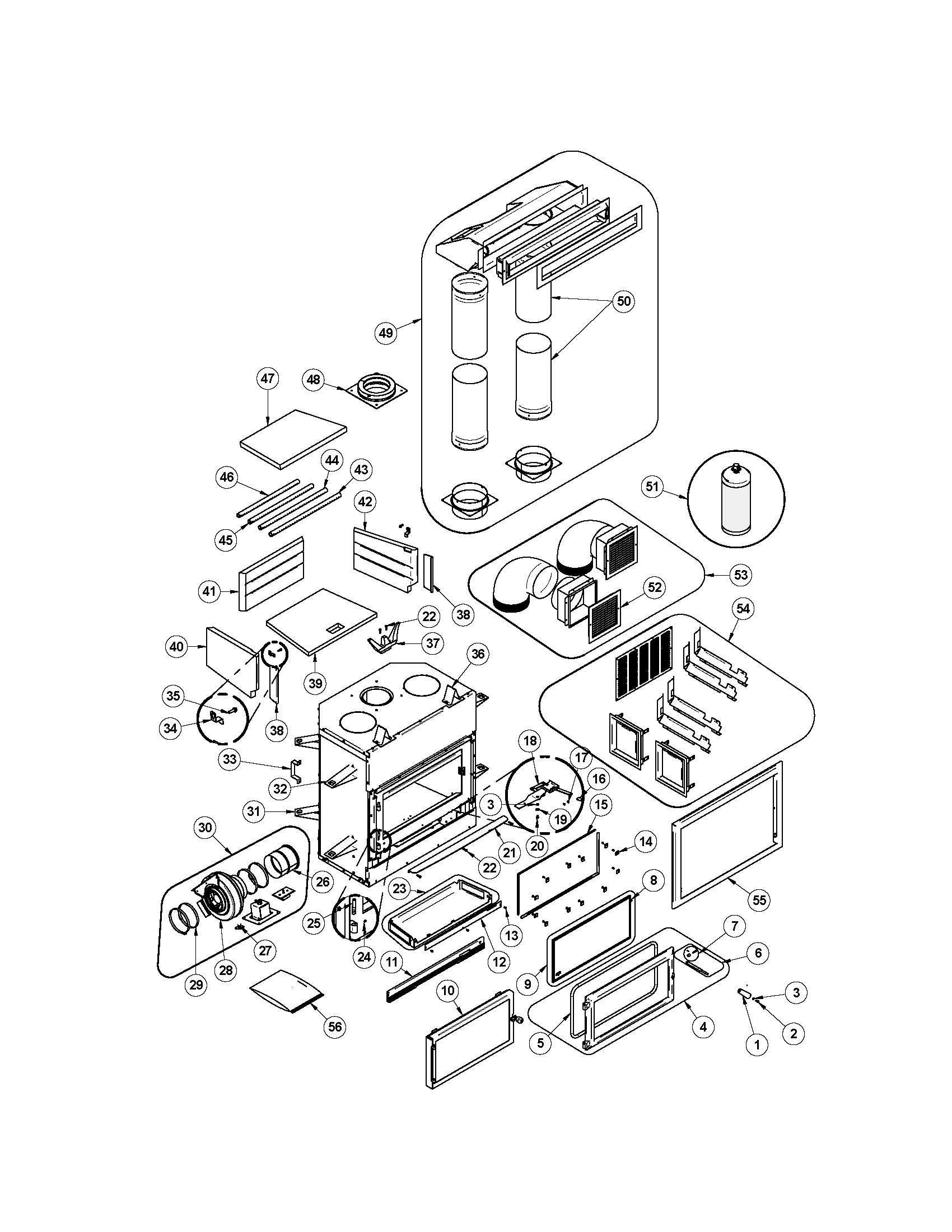

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
130898
ROUND WOODEN BLACK HANDLE
1 / appliance (sold individually)
--
230025
BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX
1 / appliance (sold individually)
--
330187
STAINLESS WASHER ID 17/64" x OD 1/2"
2 / appliance (sold individually)
--
4AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
5SE24334
DOOR ASSEMBLY
1 / appliance (sold individually)
--
6SE72135
REPLACEMENT HANDLE WITH LATCH KIT
1 / appliance (sold individually)
--
7AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
8AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
9SE72341
VENTIS GLASS 24 7/8''W X 11 3/4''H
1 / appliance (sold individually)
--
10AC01275
FIRESCREEN DOOR
1 / appliance (sold individually)
--
11SE72381
BOTTOM CAGE ASSEMBLY
1 / appliance (sold individually)
--
12PL72188
AIR CONTROL CAP
1 / appliance (sold individually)
--
1330154
BLACK SCREW #10 x 5/8" QUADREX #2 TYPE A
3 / appliance (sold individually)
--
14SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
--
15PL72314
GLASS FRAME
2 / appliance (sold individually)
--
1630556
AIR CONTROL FINISHING TIP
1 / appliance (sold individually)
--
1730029
THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER
2 / appliance (sold individually)
--
18SE72269
AIR CONTROL DAMPER ASSEMBLY
1 / appliance (sold individually)
--
1930206
ZINC WASHER 5/16"ID x 3/4"OD
1 / appliance (sold individually)
--
2030060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
1 / appliance (sold individually)
--
21PL72141
DECORATIVE SHELF
1 / appliance (sold individually)
--
2230506
SCREW PAN TORX TYPE F 1/4-20 x 1" BLACK
5 / appliance (sold individually)
--
23SE72187
AIR TIGHT CHANNEL ASSEMBLY
1 / appliance (sold individually)
--
2430117
SOCKET SET SCREW #10-32 x 1/4"
2 / appliance (sold individually)
--
2530586
HINGE PIN
2 / appliance (sold individually)
--
26PL69151
ADAPTER 6"
1 / appliance (sold individually)
--
2744028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
--
2844142
BLOWER 6'' 300 CFM
1 / appliance (sold individually)
--
2949608
All stainlesss steel clamp 114 to 165 mm
4 / appliance (sold individually)
USD $6.00
30AC01363
FORCED AIR KIT
1 / appliance (sold individually)
--
31PL72246
REAR SIDE SPACER
4 / appliance (sold individually)
--
32PL72245
SIDE SPACER
4 / appliance (sold individually)
--
33PL53065
REAR STANDOFF
2 / appliance (sold individually)
--
34PL72040
REFRACTORY PANEL BRACKET
2 / appliance (sold individually)
--
3530094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
--
36PL72177
TOP STANDOFF
2 / appliance (sold individually)
USD $5.00
37PL53144
ANDIRON
1 / appliance (sold individually)
--
38PL66568
FRONT REFRACTORY PROTECTOR
2 / appliance (sold individually)
--
3922141
FLOOR REFRACTORY SLAB
1 / appliance (sold individually)
--
4022152
LEFT REFRACTORY
1 / appliance (sold individually)
--
4122150
REAR REFRACTORY
1 / appliance (sold individually)
--
4222151
REFRACTORY RIGHT STONE
1 / appliance (sold individually)
--
43PL72049
FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
--
44PL72048
CENTER FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
--
45PL72047
CENTER BACK SECONDARY AIR TUBE
1 / appliance (sold individually)
--
46PL72046
BACK SECONDARY AIR TUBE
1 / appliance (sold individually)
--
4721578
C-CAST BAFFLE
1 / appliance (sold individually)
--
48CVA-AP06
6" stainless steel anchor plate
1 / appliance (sold individually)
--
49AC01389
MODERN HOT AIR GRAVITY KIT WITH ADJUSTABLE PIPES
1 / appliance (sold individually)
--
50SE66646
GRAVITY PIPE EXTENTION KIT UNPAINTED
1 / appliance (sold individually)
--
51AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
--
5230540
HOT AIR GRAVITY KIT GRILL
2 / appliance (sold individually)
--
53AC01375
TRADITIONAL HOT AIR GRAVITY KIT
1 / appliance (sold individually)
--
54AC01224
CHASE REDUCTION KIT
1 / appliance (sold individually)
--
55SE72380
FACADE HE275CF ASSEMBLY
1 / appliance (sold individually)
--
56SE46181
HE275CF INSTRUCTION MANUAL KIT
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.

* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
