HES240
VB00016

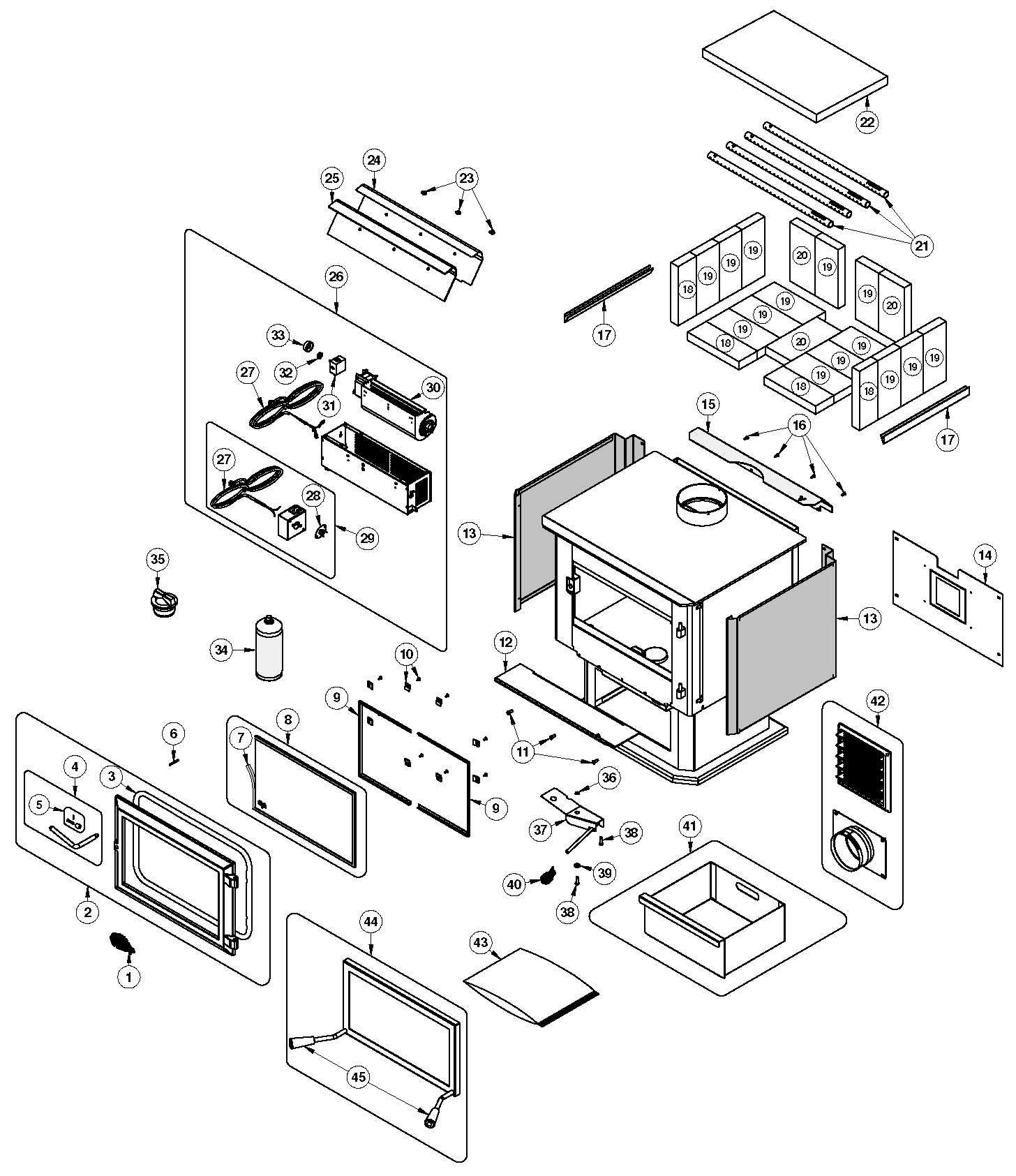

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 2 | SE24335 VENTIS SERIAL 2.3 CAST IRON DOOR 1 / appliance (sold individually) | USD $225.00 | ||
| 3 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 4 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | USD $40.00 | ||
| 5 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 6 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $15.00 | ||
| 8 | SE65323 VENTIS 2.3 GLASS 17 7/8''W X 11 1/4''H 1 / appliance (sold individually) | USD $175.00 | ||
| 9 | PL65314 RIGHT GLASS FRAME 1 / appliance (sold individually) | USD $10.00 | ||
| 10 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | ||
| 11 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 1 / appliance (sold individually) | USD $2.00 | ||
| 12 | PL65303 ASH SHELF 1 / appliance (sold individually) | USD $30.00 | ||
| 13 | PL65311 DÉCORATIVE PANEL 1 / appliance (sold individually) | USD $90.00 | ||
| 14 | PL65542 BASE COVER 1 / appliance (sold individually) | USD $30.00 | ||
| 15 | PL65302 AIR DEFLECTOR 1 / appliance (sold individually) | USD $48.00 | ||
| 16 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 1 / appliance (sold individually) | USD $1.00 | ||
| 17 | PL65127 FLOORED BRICK RETAINER 1 / appliance (sold individually) | USD $15.00 | ||
| 18 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $10.00 | ||
| 19 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | USD $10.00 | ||
| 20 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | USD $10.00 | ||
| 21 | PL65514 SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $50.00 | ||
| 22 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | USD $55.00 | ||
| 23 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 1 / appliance (sold individually) | USD $1.00 | ||
| 24 | PL65505 TOP AIR DEFLECTOR PROTECTOR 1 / appliance (sold individually) | USD $40.00 | ||
| 25 | 21387 TOP AIR DEFLECTOR INSULATION 1 / appliance (sold individually) | USD $15.00 | ||
| 26 | AC01000 130 CFM BLOWER WITH THERMODISC 1 / appliance (sold individually) | USD $360.00 | ||
| 27 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | USD $20.00 | ||
| 28 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | ||
| 29 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $80.00 | ||
| 30 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | USD $175.00 | ||
| 31 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 32 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 33 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 34 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 35 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | USD $25.00 | ||
| 36 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 37 | SE65305 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $40.00 | ||
| 38 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | USD $1.00 | ||
| 39 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 40 | AC07869 3/8" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 41 | PL65960 ASH DRAWER 1 / appliance (sold individually) | USD $85.00 | ||
| 42 | AC01336 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $110.00 | ||
| 43 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 44 | AC01315 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $180.00 | ||
| 45 | 30898 BLACK ROUND WOODEN HANDLE 1 / appliance (sold individually) | USD $15.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
