HES170
VB00013-1

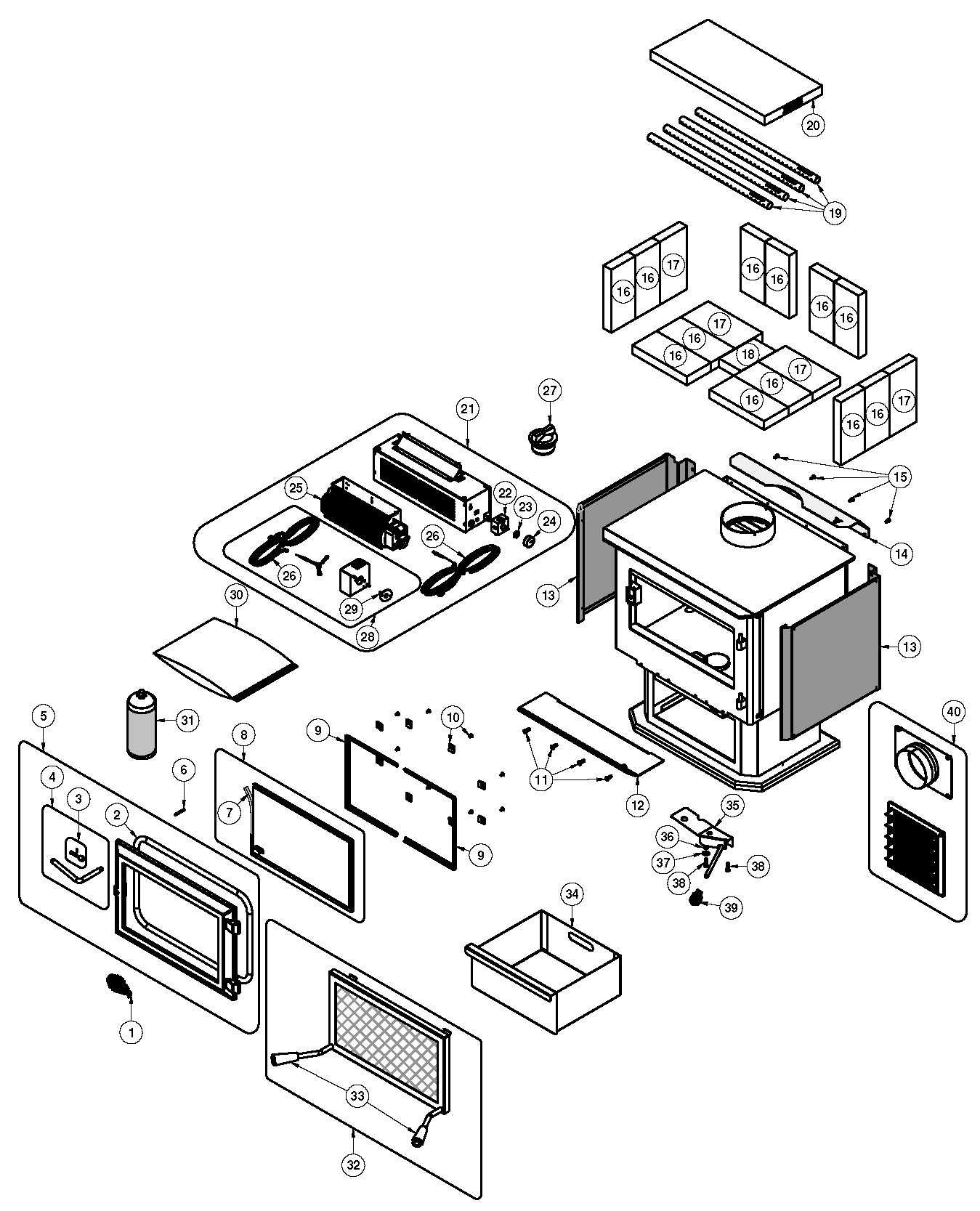

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 2 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 3 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 4 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | USD $40.00 | ||
| 5 | SE24328 VENTIS SERIAL 1.7 CAST IRON DOOR 1 / appliance (sold individually) | USD $195.00 | ||
| 6 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $15.00 | ||
| 8 | SE70789 16 5/8''W X 10 3/16''H VENTIS 1.7 GLASS 1 / appliance (sold individually) | USD $140.00 | ||
| 9 | PL70884 RIGHT GLASS FRAME 2 / appliance (sold individually) | USD $10.00 | ||
| 10 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | ||
| 11 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 4 / appliance (sold individually) | USD $2.00 | ||
| 12 | PL70885 ASH SHELF 1 / appliance (sold individually) | USD $30.00 | ||
| 13 | PL70794 DECORATIVE PANEL 2 / appliance (sold individually) | USD $85.00 | ||
| 14 | PL70795 REAR AIR DEFLECTOR 1 / appliance (sold individually) | USD $30.00 | ||
| 15 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 4 / appliance (sold individually) | USD $1.00 | ||
| 16 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 12 / appliance (sold individually) | USD $10.00 | ||
| 17 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | USD $6.00 | ||
| 18 | PL36274 3 5/8" x 5 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | USD $10.00 | ||
| 19 | PL70516 SECONDARY AIR TUBE 4 / appliance (sold individually) | USD $50.00 | ||
| 20 | 21586 18 7/8" x 9 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | USD $50.00 | ||
| 21 | AC01000 130 CFM BLOWER WITH THERMODISC 1 / appliance (sold individually) | USD $360.00 | ||
| 22 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 23 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 24 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 25 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | USD $175.00 | ||
| 26 | 60013 POWER CORD 96" x 18-3 2 / appliance (sold individually) | USD $20.00 | ||
| 27 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | USD $25.00 | ||
| 28 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | USD $80.00 | ||
| 29 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | USD $25.00 | ||
| 30 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 31 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 32 | AC01299 RIGID FIRESCREEN 1 / appliance (sold individually) | USD $180.00 | ||
| 33 | 30898 BLACK ROUND WOODEN HANDLE 1 / appliance (sold individually) | USD $15.00 | ||
| 34 | PL65960 ASH DRAWER 1 / appliance (sold individually) | USD $85.00 | ||
| 35 | SE70618 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $55.00 | ||
| 36 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 37 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 38 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 2 / appliance (sold individually) | USD $1.00 | ||
| 39 | 30734 BLACK COIL HANDLE 3/8" 1 / appliance (sold individually) | USD $3.00 | ||
| 40 | SE65598 AIR INTAKE ADAPTER 1 / appliance (sold individually) | USD $75.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
