HE200
VB00010

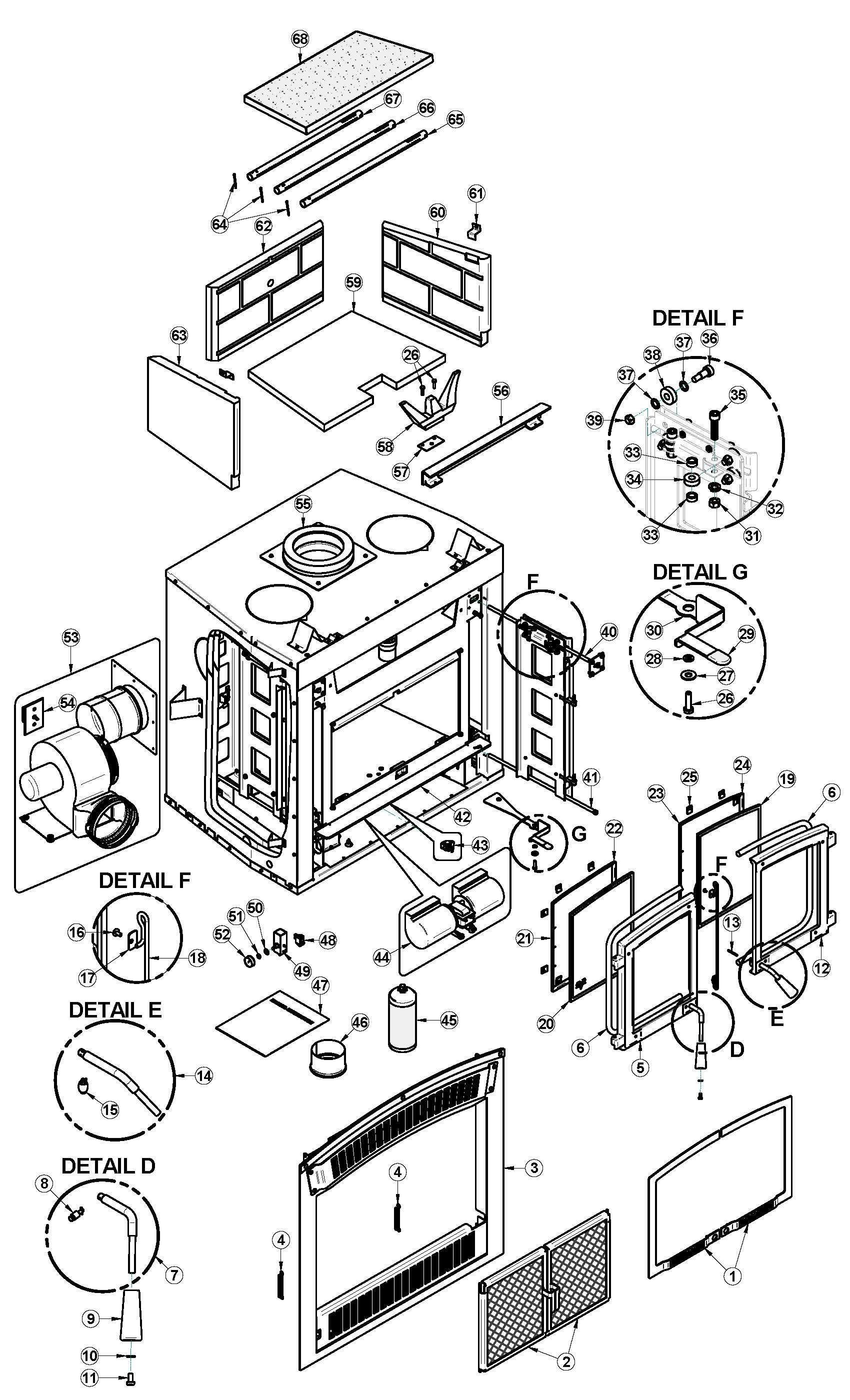

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | VBA1513 BRUSHED NICKEL DOOR OVERLAY 1 / appliance (sold individually) | USD $375.00 | ||
| 1 | VBA1512 BLACK DOOR OVERLAY 1 / appliance (sold individually) | USD $150.00 | ||
| 2 | VA8420 RIGID FIRESCREEN DOOR 1 / appliance (sold individually) | USD $250.00 | ||
| 3 | VBA1531 TRADITIONAL STYLE FACEPLATE - METALLIC BLACK 1 / appliance (sold individually) | USD $650.00 | ||
| 4 | 30472 SPRING 1/2" OØ x 3"L 2 / appliance (sold individually) | USD $10.00 | ||
| 5 | SE24280 LEFT DOOR ASSEMBLY 1 / appliance (sold individually) | USD $315.00 | ||
| 6 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 7 | AC09138 LEFT HAND SIDE REPLACEMENT HANDLE 1 / appliance (sold individually) | USD $65.00 | ||
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 9 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | USD $15.00 | ||
| 10 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 3 / appliance (sold individually) | USD $1.00 | ||
| 11 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 2 / appliance (sold individually) | USD $1.00 | ||
| 12 | SE24281 RIGHT DOOR ASSEMBLY 1 / appliance (sold individually) | USD $255.00 | ||
| 13 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | USD $2.00 | ||
| 14 | AC09139 RIGHT HAND SIDE REPLACEMENT HANDLE 1 / appliance (sold individually) | USD $65.00 | ||
| 15 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 16 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | USD $1.00 | ||
| 17 | PL66525 GASKET RETAINER 2 / appliance (sold individually) | USD $2.00 | ||
| 18 | AC06815 3/16" x 5' BLACK GASKET AND SILICONE KIT 1 / appliance (sold individually) | USD $20.00 | ||
| 19 | SE61636 RIGHT ARCHED GLASS WITH GASKET - 10 5/8"W X 13 3/4"H 1 / appliance (sold individually) | USD $130.00 | ||
| 20 | SE61635 LEFT ARCHED GLASS WITH GASKET - 10 5/8"W X 13 3/4"H 1 / appliance (sold individually) | USD $125.00 | ||
| 21 | PL61631 LH SHORT GLASS HOLDER 1 / appliance (sold individually) | USD $10.00 | ||
| 22 | PL61632 LH LONG GLASS HOLDER 1 / appliance (sold individually) | USD $10.00 | ||
| 23 | PL61633 RH LONG GLASS HOLDER 1 / appliance (sold individually) | USD $10.00 | ||
| 24 | PL61634 RH SHORT GLASS HOLDER 1 / appliance (sold individually) | USD $10.00 | ||
| 25 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | USD $20.00 | ||
| 26 | 30109 BOLT HEX 1/4 - 20 x 1" 3 / appliance (sold individually) | USD $2.00 | ||
| 27 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 28 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 3 / appliance (sold individually) | USD $1.00 | ||
| 29 | 30556 AIR CONTROL FINISHING TIP 1 / appliance (sold individually) | USD $5.00 | ||
| 30 | PL61647 PRIMARY AIR CONTROL DAMPER 1 / appliance (sold individually) | USD $20.00 | ||
| 31 | 30423 3/8'' - 16 HEX ZINC NUT 8 / appliance (sold individually) | USD $1.00 | ||
| 32 | 30215 LOCK WASHER 3/8'' 8 / appliance (sold individually) | USD $1.00 | ||
| 33 | 30581 DOOR MECHANISM BUSHING 16 / appliance (sold individually) | USD $3.00 | ||
| 34 | 30555 DOOR MECHANISM BEARING 8 / appliance (sold individually) | USD $5.00 | ||
| 35 | 30249 SOCKET CAP SCREW BLACK 3/8-16 X 1-1/2 8 / appliance (sold individually) | -- | ||
| 36 | 30907 SHOULDER SCREW M8-1.25, 16mm LONG SHOULDER 8 / appliance (sold individually) | USD $6.00 | ||
| 37 | 30186 RING ID=13/32" X OD=5/8" Zinc 16 / appliance (sold individually) | USD $2.00 | ||
| 38 | 30598 HI-TEMP BEARING (BULK PAGKAGING) 8 / appliance (sold individually) | USD $15.00 | ||
| 39 | 30910 LOCKNUT HEX M8-1.25 8 / appliance (sold individually) | USD $2.00 | ||
| 40 | 31015 DOOR MECHANISM TOP GUIDE 2 / appliance (sold individually) | USD $65.00 | ||
| 41 | 31016 DOOR MECHANISM BOTTOM GUIDE 2 / appliance (sold individually) | USD $20.00 | ||
| 42 | PL61624 ASH LIP 1 / appliance (sold individually) | USD $30.00 | ||
| 43 | VA1150 THERMODISC F120-10F 1 / appliance (sold individually) | USD $60.00 | ||
| 44 | 44122 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | USD $250.00 | ||
| 45 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 46 | PL63954 4" ADAPTOR 1 / appliance (sold individually) | USD $50.00 | ||
| 47 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 48 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | USD $10.00 | ||
| 49 | 44084 RHEOSTAT WITHOUT NUT AND FLAT WASHER 1 / appliance (sold individually) | USD $50.00 | ||
| 50 | 44203 RHEOSTAT WASHER 1 / appliance (sold individually) | USD $2.00 | ||
| 51 | 44202 RHEOSTAT NUT 1 / appliance (sold individually) | USD $2.00 | ||
| 52 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 53 | VA4460 FORCED AIR KIT 1 / appliance (sold individually) | USD $760.00 | ||
| 54 | 44131 SPEED CONTROL | 2.5 A 1 / appliance (sold individually) | USD $75.00 | ||
| 55 | CVA-AP06 6" stainless steel anchor plate 1 / appliance (sold individually) | -- | ||
| 56 | SE61612 INNER ASH SHELF 1 / appliance (sold individually) | USD $40.00 | ||
| 57 | 21285 ANDIRON GASKET 1 / appliance (sold individually) | -- | ||
| 58 | VA4070 CAST IRON ANDIRON 1 / appliance (sold individually) | USD $120.00 | ||
| 59 | VA8071-4 FLOOR REFRACTORY SLAB 1 / appliance (sold individually) | USD $90.00 | ||
| 60 | VA8071-3 RIGHT REFRACTORY SLAB 1 / appliance (sold individually) | USD $90.00 | ||
| 61 | PL53145 REFRACTORY BRICK PANEL RETAINER 2 / appliance (sold individually) | USD $10.00 | ||
| 62 | VA8071-1 BACK REFRACTORY SLAB 1 / appliance (sold individually) | USD $80.00 | ||
| 63 | VA8071-2 LEFT REFRACTORY SLAB 1 / appliance (sold individually) | USD $90.00 | ||
| 64 | 30068 STAINLESS STEEL COTTER PIN 1/8" x 1 1/2" 3 / appliance (sold individually) | USD $2.00 | ||
| 65 | PL61611 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $25.00 | ||
| 66 | PL61610 MIDDLE SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $35.00 | ||
| 67 | PL61609 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $25.00 | ||
| 68 | SE61312 STAINLESS STEEL BAFFLE ASSEMBLY 1 / appliance (sold individually) | USD $115.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
