HE300

VB00006

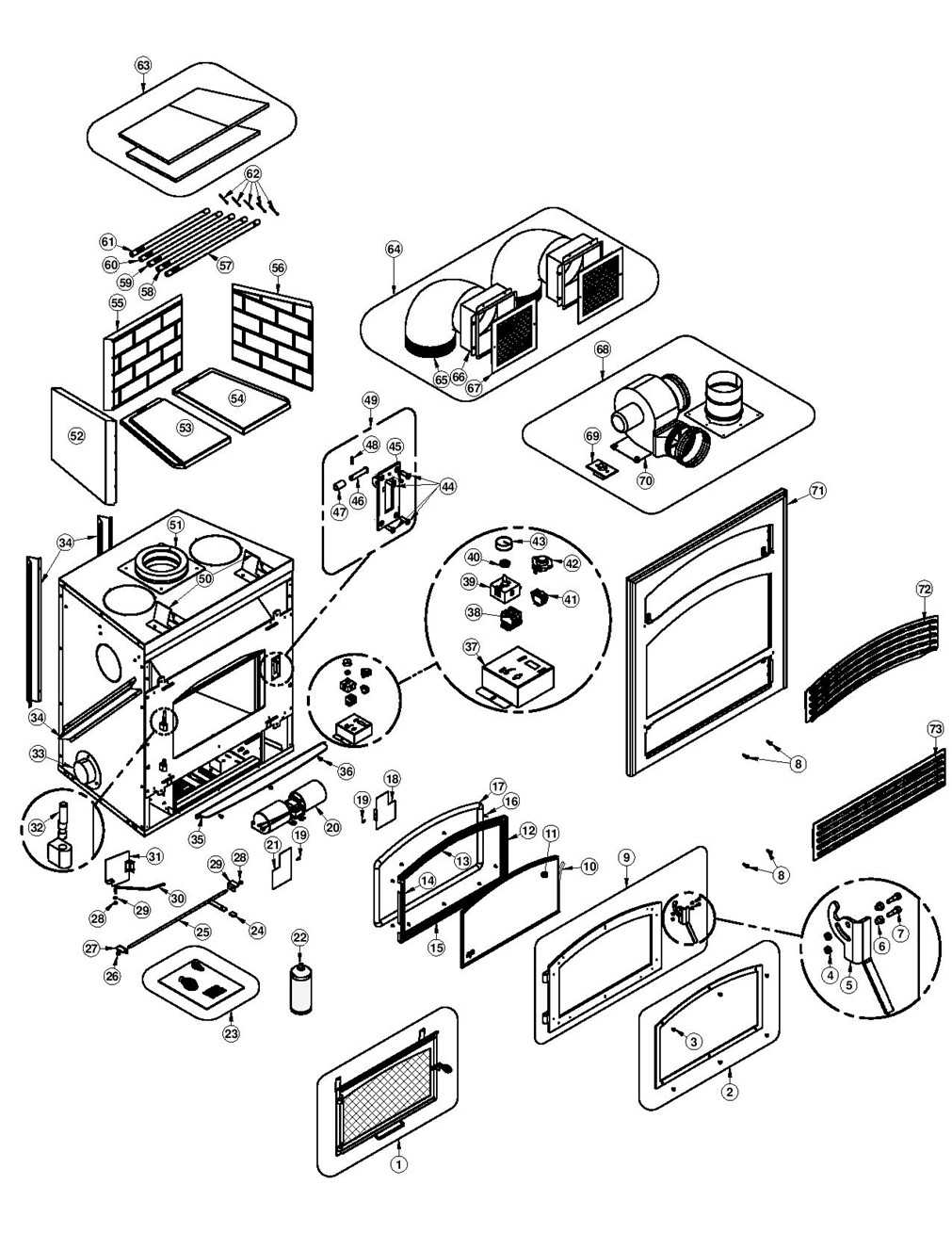

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1AC01379
FIRESCREEN DOOR
1 / appliance (sold individually)
--
2VBA1518
BRUSHED NICKEL DOOR OVERLAY
1 / appliance (sold individually)
--
2VBA1517
BLACK DOOR OVERLAY
1 / appliance (sold individually)
--
330253
MECHANICAL SCREW 1/4-20 x 5/16" BUTTONHEAD HEX DEEP #5/32 SS 18-8
6 / appliance (sold individually)
--
330252
MECHANICAL SCREW 1/4-20 X 5/16" BUTTONHEAD HEX DEEP #5/32 18-8 BLACK
6 / appliance (sold individually)
--
430238
TWO-WAY LOCKNUT HEX #10-24 ZINC
2 / appliance (sold individually)
--
5PL70213
DOOR HANDLE
1 / appliance (sold individually)
--
630913
PIVOT BUSHING
2 / appliance (sold individually)
--
730754
HEX SOCKET SHOULDER HEX SCREW #10-24 X 3/8''
2 / appliance (sold individually)
--
830017
BLACK MECHANICAL SCREW 1/4-20 x 3/4" PAN QUADREX ZINC
4 / appliance (sold individually)
--
9SE70170
DOOR ASSEMBLY
1 / appliance (sold individually)
--
10AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
11SE70198
ARCHED REPLACEMENT GLASS WITH GASKET HE300
1 / appliance (sold individually)
--
12PL70173
RIGHT GLASS FRAME
1 / appliance (sold individually)
--
13PL70174
TOP GLASS FRAME
1 / appliance (sold individually)
--
14PL70172
LEFT GLASS FRAME
1 / appliance (sold individually)
--
15PL70171
BOTTOM GLASS FRAME
1 / appliance (sold individually)
--
1630124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
10 / appliance (sold individually)
--
17AC06730
SILICONE & 1" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
18PL70145
LEFT FACEPLATE LID
1 / appliance (sold individually)
--
1930154
BLACK SCREW #10 x 5/8" QUADREX #2 TYPE A
2 / appliance (sold individually)
--
2044089
DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A
1 / appliance (sold individually)
--
21PL70144
RIGHT FACEPLATE LID
1 / appliance (sold individually)
--
22AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
--
23SE45851
HE300 INSTRUCTION MANUAL KIT
1 / appliance (sold individually)
--
2430556
AIR CONTROL FINISHING TIP
1 / appliance (sold individually)
--
25SE70211
AIR INLET ROD
1 / appliance (sold individually)
--
2630220
FLANGED LOCKNUT 1/4-20
2 / appliance (sold individually)
--
27PL70095
AIR INLET
2 / appliance (sold individually)
--
2830219
LOCK NUT #10-24 HEX NYLON
1 / appliance (sold individually)
--
2930187
STAINLESS WASHER ID 17/64" x OD 1/2"
1 / appliance (sold individually)
--
30PL70015
FRESH AIR ADJUSTMENT ROD
1 / appliance (sold individually)
--
31PL70081
FRESH AIR INLET DAMPER
1 / appliance (sold individually)
--
3230586
HINGE PIN
2 / appliance (sold individually)
--
33SE70141
FRESH AIR INTAKE ADAPTOR
1 / appliance (sold individually)
--
34PL70297
SIDE OR REAR STAND-OFF (EVE-2117-3)
4 / appliance (sold individually)
--
35PL70227
ASH TRAY
1 / appliance (sold individually)
--
3630060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
3 / appliance (sold individually)
--
37PL70113
TERMINAL COVER
1 / appliance (sold individually)
--
3860204A
TERMINAL 3/8" SECTION
1 / appliance (sold individually)
--
4044087
RHEOSTAT NUT
1 / appliance (sold individually)
--
4144091
ROCKER SWITCH 2 POSITION MSR-8
1 / appliance (sold individually)
--
42VA1150
THERMODISC F120-10F
1 / appliance (sold individually)
--
4344085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
4430022
MECHANICAL SCREW 10-32 X 1/2'' FLAT HEAD
4 / appliance (sold individually)
--
4530117
SOCKET SET SCREW #10-32 x 1/4"
1 / appliance (sold individually)
--
4630753
CLEVIS PIN 1/4'' LONG 1-1/4''
1 / appliance (sold individually)
--
4730780
DOOR LATCH BUSHING
1 / appliance (sold individually)
--
4830062
SPRING PIN 3/32" X 1/2"
1 / appliance (sold individually)
--
49SE70180
DOOR LATCH ASSEMBLY
1 / appliance (sold individually)
--
50PL70312
TOP STAND-OFF (1118-5)
2 / appliance (sold individually)
--
51CVA-AP06
6" stainless steel anchor plate
1 / appliance (sold individually)
--
5222233
LEFT REFRACTORY (PEV2014GA)
1 / appliance (sold individually)
--
5322234
LEFT FLOOR REFRACTORY
1 / appliance (sold individually)
--
5422235
RIGHT FLOOR REFRACTORY PANEL
1 / appliance (sold individually)
--
5522231
BACK REFRACTORY (PEV2012)
1 / appliance (sold individually)
--
5622232
RIGHT REFRACTORY (PEV2014DA)
1 / appliance (sold individually)
--
57PL70130
FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
--
58PL70131
CENTER FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
--
59PL70132
CENTER SECONDARY AIR TUBE
1 / appliance (sold individually)
--
60PL70133
REAR CENTER SECONDARY AIR TUBE
1 / appliance (sold individually)
--
61PL70134
REAR SECONDARY AIR TUBE
1 / appliance (sold individually)
--
62SE36250
STAINLESS STEEL COTTER PIN 1/8" x 1 1/2" (12 UNITS)
1 / appliance (sold individually)
--
63SE36511
RIGID CERAMIC BAFFLE KIT 2000 SERIE (3 PCES)
1 / appliance (sold individually)
--
64AC01375
TRADITIONAL HOT AIR GRAVITY KIT
1 / appliance (sold individually)
--
6549066
90° X 8" 26Ga. GALVANISED ELBOW
2 / appliance (sold individually)
--
6630640
GALVANISED BOX FOR HOT AIR GRAVITY KIT 8"
2 / appliance (sold individually)
--
6730540
HOT AIR GRAVITY KIT GRILL
2 / appliance (sold individually)
--
68VA4460
FORCED AIR KIT
1 / appliance (sold individually)
--
6944131
SPEED CONTROL (2.5 A)
1 / appliance (sold individually)
--
7044121
FORCED AIR KIT BLOWER 6'' - 2.4A
1 / appliance (sold individually)
--
71SE70188
HE300 FACEPLATE
1 / appliance (sold individually)
--
72SE70196
HE300 FACEPLATE TOP LOUVER
1 / appliance (sold individually)
--
73SE70195
HE300 FACEPLATE BOTTOM LOUVER
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.

* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
