HE300
VB00006-1

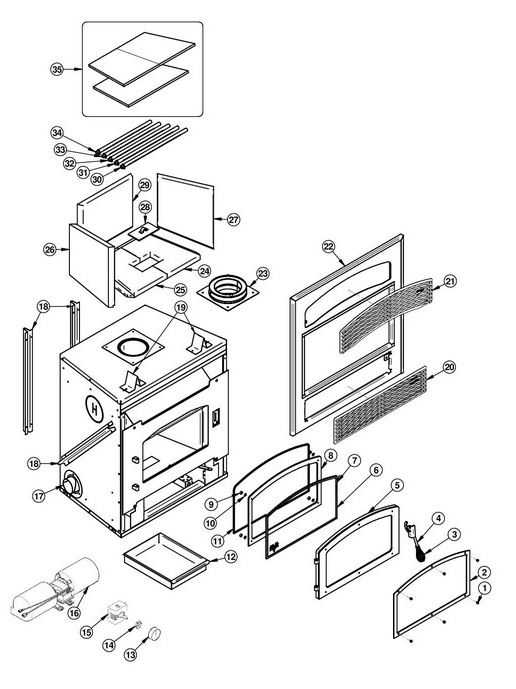

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | 30252 MECHANICAL SCREW 1/4-20 X 5/16" BUTTONHEAD HEX DEEP #5/32 18-8 BLACK 6 / appliance (sold individually) | USD $1.00 | ||
| 2 | VBA1518 BRUSHED NICKEL DOOR OVERLAY 1 / appliance (sold individually) | USD $450.00 | ||
| 2 | VBA1517 BLACK DOOR OVERLAY 1 / appliance (sold individually) | USD $150.00 | ||
| 3 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | USD $9.00 | ||
| 4 | PL70329 HANDLE KIT (1196-2) 1 / appliance (sold individually) | USD $25.00 | ||
| 5 | SE70012 DOOR ASSEMBLY WITH INNER FRAME 1 / appliance (sold individually) | USD $680.00 | ||
| 6 | SE70013 ARCHED GLASS WITH GASKET - 22 1/8"W X 12 5/8"H 1 / appliance (sold individually) | -- | ||
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | USD $15.00 | ||
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 9 | 30100 BLACK HEX NUT 1/4 - 20 4 / appliance (sold individually) | USD $1.00 | ||
| 10 | 30185 BLACK WASHER 17/64" AA TYPE 4 / appliance (sold individually) | USD $1.00 | ||
| 11 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | USD $25.00 | ||
| 12 | SE70285 ASH DRAWER 1 / appliance (sold individually) | USD $75.00 | ||
| 13 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 14 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 15 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 16 | 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A 1 / appliance (sold individually) | USD $250.00 | ||
| 17 | SE70298 AIR INLET ADAPTER 1 / appliance (sold individually) | USD $50.00 | ||
| 18 | PL70297 SIDE OR REAR STAND-OFF (EVE-2117-3) 4 / appliance (sold individually) | USD $10.00 | ||
| 19 | PL70312 TOP STAND-OFF (1118-5) 2 / appliance (sold individually) | USD $10.00 | ||
| 20 | SE70332 BOTTOM LOUVER WITH TWISTED RODS 1 / appliance (sold individually) | USD $245.00 | ||
| 21 | SE70331 TOP LOUVER WITH TWISTED RODS 1 / appliance (sold individually) | USD $270.00 | ||
| 22 | SE70330 FACEPLATE ASSEMBLY WITHOUT LOUVERS 1 / appliance (sold individually) | USD $550.00 | ||
| 23 | CVA-AP06 6" stainless steel anchor plate 1 / appliance (sold individually) | -- | ||
| 24 | 22229 RIGHT FLOOR REFRACTORY PANEL (PEV2011D) 1 / appliance (sold individually) | USD $85.00 | ||
| 25 | 22230 LEFT FLOOR REFRACTORY (PEV2011G) 1 / appliance (sold individually) | USD $85.00 | ||
| 26 | 22233 LEFT REFRACTORY STONE (PEV2014GA) 1 / appliance (sold individually) | USD $125.00 | ||
| 27 | 22232 RIGHT REFRACTORY STONE (PEV2014DA) 1 / appliance (sold individually) | USD $125.00 | ||
| 28 | SE70319 ASH DUMP COVER 1 / appliance (sold individually) | USD $20.00 | ||
| 29 | 22231 REAR REFRACTORY STONE (PEV2012) 1 / appliance (sold individually) | USD $120.00 | ||
| 30 | SE36543 FRONT SECONDARY AIR TUBE (2145A) 1 / appliance (sold individually) | USD $45.00 | ||
| 31 | SE36544 MIDDLE FRONT SECONDARY AIR TUBE (2145B) 1 / appliance (sold individually) | USD $45.00 | ||
| 32 | SE36545 MIDDLE SECONDARY AIR TUBE (2145C) 1 / appliance (sold individually) | USD $45.00 | ||
| 33 | SE36546 MIDDLE REAR SECONDARY AIR TUBE (2145D) 1 / appliance (sold individually) | USD $45.00 | ||
| 34 | SE36547 REAR SECONDARY AIR TUBE (2145E) 1 / appliance (sold individually) | USD $45.00 | ||
| 35 | SE36511 RIGID CERAMIC BAFFLE KIT 2000 SERIE (3 PCES) 1 / appliance (sold individually) | USD $195.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
