ME150
VB00004

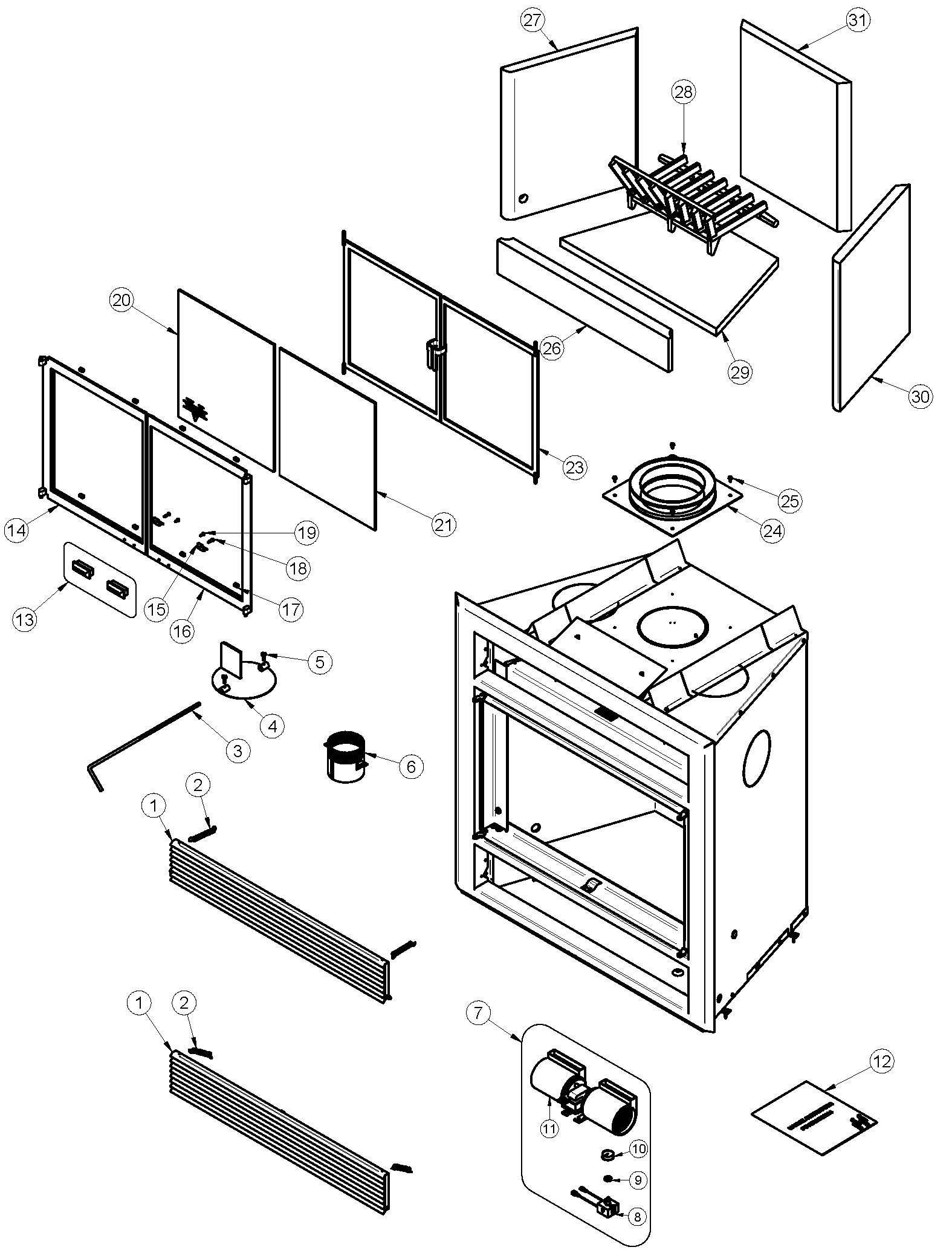

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | SE60079 BOTTOM OR TOP LOUVER ASSEMBLY 2 / appliance (sold individually) | USD $150.00 | ||
| 2 | 30472 SPRING 1/2" OØ x 3"L 4 / appliance (sold individually) | USD $10.00 | ||
| 3 | PL59815 EXHAUST DAMPER ROD 1 / appliance (sold individually) | USD $20.00 | ||
| 4 | SE60063 EXHAUST DAMPER ASSEMBLY 1 / appliance (sold individually) | USD $75.00 | ||
| 5 | 30484 WING NUT 1/4-20 2 / appliance (sold individually) | USD $1.00 | ||
| 6 | PL59765 4'' ADAPTER FOR FRESH AIR INTAKE KIT 1 / appliance (sold individually) | USD $50.00 | ||
| 7 | VA4400 BLOWER WITH VARIABLE SPEED CONTROL 1 / appliance (sold individually) | USD $350.00 | ||
| 8 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | USD $55.00 | ||
| 9 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 10 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 11 | 44122 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | USD $250.00 | ||
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 13 | AC09194 BLACK WOODEN DOOR HANDLE (2 UNITS) 1 / appliance (sold individually) | USD $40.00 | ||
| 14 | SE60087 LEFT DOOR FRAME ASSEMBLY 1 / appliance (sold individually) | USD $170.00 | ||
| 15 | PL60760 DOOR RETAINER 2 / appliance (sold individually) | USD $10.00 | ||
| 16 | SE60090 RIGHT DOOR FRAME ASSEMBLY 1 / appliance (sold individually) | USD $170.00 | ||
| 17 | 30217 GLASS CUSHION 8 / appliance (sold individually) | USD $2.00 | ||
| 18 | 30244 WOOD SCREW #8 X 3/4" PAN HEAD 2 / appliance (sold individually) | USD $1.00 | ||
| 19 | 30158 BLACK METAL SCREW #8 X 1/2" PAN QUADREX TYPE "A" 2 / appliance (sold individually) | USD $1.00 | ||
| 20 | SE60099 14 7/8" X 17 1/8" LEFT REPLACEMENT GLASS 1 / appliance (sold individually) | USD $225.00 | ||
| 21 | SE60100 14 7/8" X 17 1/8" RIGHT REPLACEMENT GLASS 1 / appliance (sold individually) | USD $225.00 | ||
| 22 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 24 | CVA-AP07 7" stainless steel anchor plate 1 / appliance (sold individually) | -- | ||
| 25 | 30161 METAL SCREW #8 X 1/2" HEX TEK 4 / appliance (sold individually) | USD $1.00 | ||
| 26 | VA2071-5 FRONT REFRACTORY SLAB 1 / appliance (sold individually) | USD $100.00 | ||
| 27 | VA2071-2 LEFT REFRACTORY SLAB 1 / appliance (sold individually) | USD $115.00 | ||
| 28 | VA2070 CAST IRON GRATE 1 / appliance (sold individually) | USD $225.00 | ||
| 29 | VA2071-4 FLOOR REFRACTORY SLAB 1 / appliance (sold individually) | USD $100.00 | ||
| 30 | VA2071-3 RIGHT REFRACTORY SLAB 1 / appliance (sold individually) | USD $115.00 | ||
| 31 | VA2071-1 REAR REFRACTORY SLAB 1 / appliance (sold individually) | USD $135.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
