HE200
VB00003

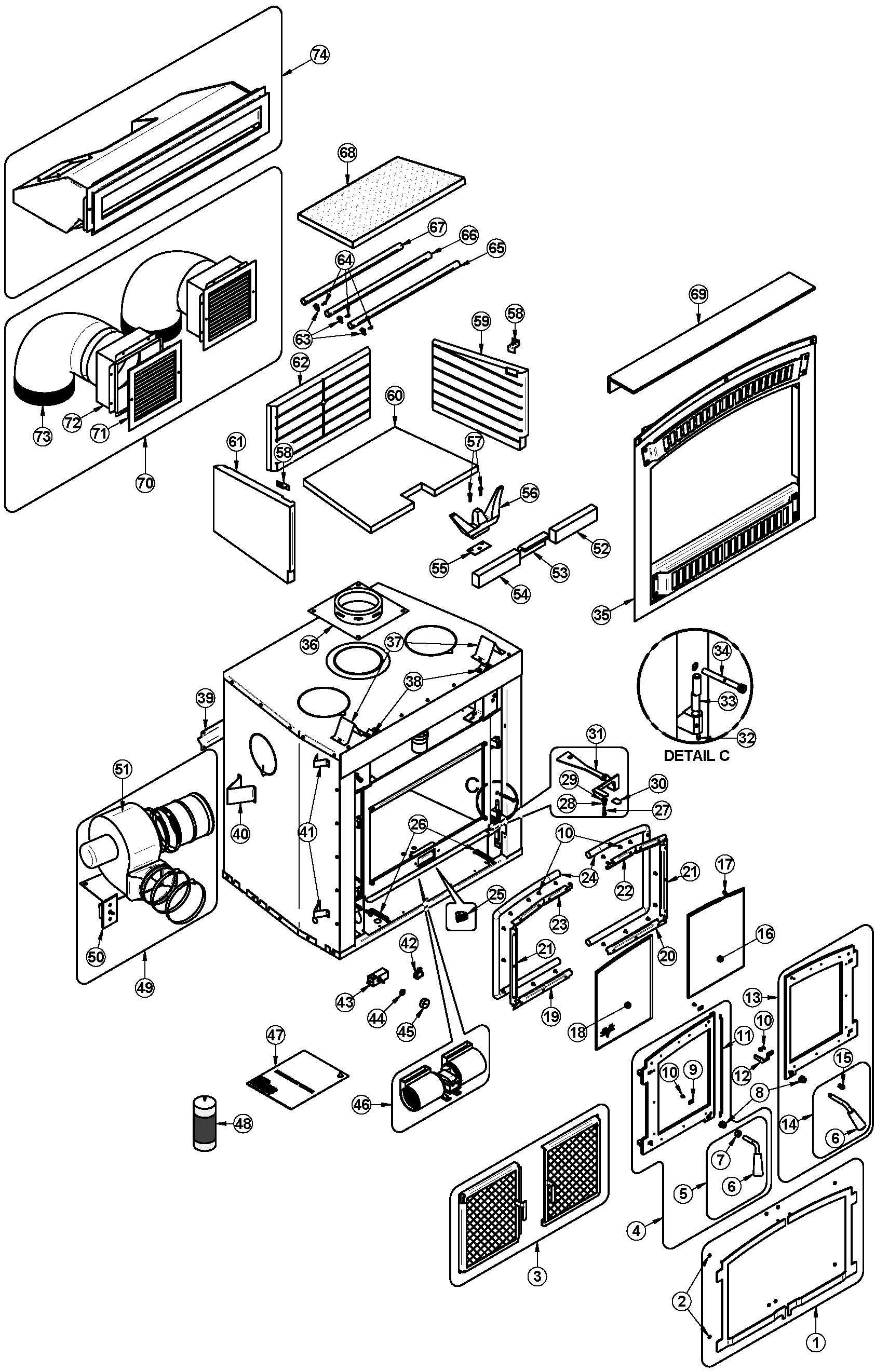

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | VBA1515 BLACK DOOR OVERLAY 1 / appliance (sold individually) | USD $150.00 | ||
| 1 | VBA1516 BRUSHED NICKEL DOOR OVERLAY 1 / appliance (sold individually) | USD $350.00 | ||
| 2 | 30417 BLACK HEX NUT #8-32 8 / appliance (sold individually) | USD $1.00 | ||
| 4 | SE61383 LEFT DOOR ASSEMBLY 1 / appliance (sold individually) | USD $195.00 | ||
| 5 | AC09143 LEFT HAND SIDE REPLACEMENT HANDLE 1 / appliance (sold individually) | USD $35.00 | ||
| 6 | 30569 ROUND WOODEN HANDLE BLACK 2 / appliance (sold individually) | USD $15.00 | ||
| 7 | 30039 NUT 1/2-20 1 / appliance (sold individually) | USD $1.00 | ||
| 8 | 30593 STEEL 1/2-20 RF1018 SCREW INSERT 2 / appliance (sold individually) | USD $10.00 | ||
| 9 | PL61410 GASKET RETAINER 2 / appliance (sold individually) | USD $5.00 | ||
| 10 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 22 / appliance (sold individually) | USD $1.00 | ||
| 11 | 40013 3/16" BLACK ROUND GASKET (PRICE FOR LINEAR FOOT PRICE) 1.5 / appliance (sold individually) | USD $5.00 | ||
| 12 | PL61409 HANDLE STOPPER 1 / appliance (sold individually) | USD $15.00 | ||
| 13 | SE61384 RIGHT DOOR FRAME WITH HANDLE 1 / appliance (sold individually) | USD $195.00 | ||
| 14 | AC09144 RIGHT SIDE HANDLE REPLACEMENT WITH LOCK 1 / appliance (sold individually) | USD $45.00 | ||
| 15 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | USD $30.00 | ||
| 16 | SE61401 RIGHT ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $125.00 | ||
| 17 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | USD $15.00 | ||
| 18 | SE61400 LEFT ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | USD $125.00 | ||
| 19 | PL61386 LEFT DOOR TRIM 1 / appliance (sold individually) | USD $10.00 | ||
| 20 | PL61391 RIGHT DOOR TRIM 1 / appliance (sold individually) | USD $10.00 | ||
| 21 | PL61385 SIDE DOOR TRIM 2 / appliance (sold individually) | USD $10.00 | ||
| 22 | PL61390 UPPER RIGHT DOOR TRIM 1 / appliance (sold individually) | USD $10.00 | ||
| 23 | PL61387 UPPER LEFT DOOR TRIM 1 / appliance (sold individually) | USD $10.00 | ||
| 24 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 25 | VA1150 THERMODISC F120-10F 1 / appliance (sold individually) | USD $60.00 | ||
| 26 | 30472 SPRING 1/2" OØ x 3"L 2 / appliance (sold individually) | USD $10.00 | ||
| 27 | 30109 BOLT HEX 1/4 - 20 x 1" 3 / appliance (sold individually) | USD $2.00 | ||
| 28 | 30216 1/4" LOCK WASHER 1 / appliance (sold individually) | USD $1.00 | ||
| 29 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | USD $1.00 | ||
| 30 | 30556 AIR CONTROL FINISHING TIP 1 / appliance (sold individually) | USD $5.00 | ||
| 31 | PL61394 PRIMARY AIR CONTROL 1 / appliance (sold individually) | USD $20.00 | ||
| 32 | 30117 BLACK SET SCREW #10-32 x 3/16" 4 / appliance (sold individually) | USD $1.00 | ||
| 33 | 30808 HINGE PIN 4 / appliance (sold individually) | -- | ||
| 33 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 34 | 30670 MECHANICAL SCREW 1/4-20 X 2 1/4'' 6 PANS 2 / appliance (sold individually) | USD $2.00 | ||
| 35 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 36 | CVA-AP06 6" stainless steel anchor plate 1 / appliance (sold individually) | -- | ||
| 37 | PL60266 LONG TOP STANDOFF 2 / appliance (sold individually) | USD $5.00 | ||
| 38 | PL60020 SHORT TOP STANDOFF 2 / appliance (sold individually) | USD $5.00 | ||
| 39 | PL61268 REAR STANDOFF 1 / appliance (sold individually) | USD $15.00 | ||
| 40 | PL61399 LONG SIDE STANDOFF 2 / appliance (sold individually) | USD $5.00 | ||
| 41 | PL63767 SHORT SIDE STANDOFF 4 / appliance (sold individually) | USD $5.00 | ||
| 42 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | USD $10.00 | ||
| 43 | 44084 RHEOSTAT WITHOUT NUT AND FLAT WASHER 1 / appliance (sold individually) | USD $50.00 | ||
| 44 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | USD $5.00 | ||
| 45 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | USD $8.00 | ||
| 46 | 44122 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | USD $250.00 | ||
| 47 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 48 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | USD $25.00 | ||
| 49 | VA4460 FORCED AIR KIT 1 / appliance (sold individually) | USD $760.00 | ||
| 50 | 44131 SPEED CONTROL | 2.5 A 1 / appliance (sold individually) | USD $75.00 | ||
| 51 | 44121 FORCED AIR KIT BLOWER 6" - 2.4A 1 / appliance (sold individually) | USD $650.00 | ||
| 52 | 22227 RIGHT FRONT REFRACTORY PANEL 1 / appliance (sold individually) | USD $25.00 | ||
| 53 | 22228 CENTER REFRACTORY PANEL 1 / appliance (sold individually) | USD $25.00 | ||
| 54 | 22226 LEFT FRONT REFRACTORY PANEL 1 / appliance (sold individually) | USD $25.00 | ||
| 55 | 21285 ANDIRON GASKET 1 / appliance (sold individually) | -- | ||
| 56 | VA4070 CAST IRON ANDIRON 1 / appliance (sold individually) | USD $120.00 | ||
| 57 | 30109 BOLT HEX 1/4 - 20 x 1" 3 / appliance (sold individually) | USD $2.00 | ||
| 58 | PL53145 REFRACTORY BRICK PANEL RETAINER 2 / appliance (sold individually) | USD $10.00 | ||
| 59 | 22170 RIGHT REFRACTORY PANEL 1 / appliance (sold individually) | USD $80.00 | ||
| 60 | VA8071-4 FLOOR REFRACTORY SLAB 1 / appliance (sold individually) | USD $90.00 | ||
| 61 | 22169 LEFT REFRACTORY PANEL 1 / appliance (sold individually) | USD $80.00 | ||
| 62 | 22168 BACK REFRACTORY PANEL 1 / appliance (sold individually) | USD $70.00 | ||
| 63 | PL61265 SECONDARY AIR TUBE RETAINER 3 / appliance (sold individually) | USD $10.00 | ||
| 64 | 30161 METAL SCREW #8 X 1/2" HEX TEK 3 / appliance (sold individually) | USD $1.00 | ||
| 65 | PL61264 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $55.00 | ||
| 66 | PL61263 MIDDLE SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $65.00 | ||
| 67 | PL61262 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | USD $55.00 | ||
| 68 | SE61312 STAINLESS STEEL BAFFLE ASSEMBLY 1 / appliance (sold individually) | USD $115.00 | ||
| 69 | AC01324 HEAT SHIELD FOR SURROUND/SHELF 1 / appliance (sold individually) | USD $90.00 | ||
| 70 | AC01375 TRADITIONAL HOT AIR GRAVITY KIT 1 / appliance (sold individually) | USD $400.00 | ||
| 71 | 30540 HOT AIR GRAVITY KIT GRILL 2 / appliance (sold individually) | USD $75.00 | ||
| 72 | 30640 GALVANISED BOX FOR HOT AIR GRAVITY KIT 8" 2 / appliance (sold individually) | USD $80.00 | ||
| 73 | 49066 90° X 8" 26Ga. GALVANISED ELBOW 2 / appliance (sold individually) | USD $40.00 | ||
| 74 | AC01389 MODERN HOT AIR GRAVITY KIT WITH ADJUSTABLE PIPES 1 / appliance (sold individually) | USD $600.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
