CVA-WPT07
7" wall pass-thru thimble with universal adapter
•Used when a 2100 chimney passes horizontally thru a combustible wall
•Adjustable from 4" to 8" for a variety of wall thicknesses
•Ideal for those out of the ordinary installs
•Includes a 10"L finishing cover to go over the 2100 chimney pipe on the interior
•Exterior side of the wall pass-thru is satin coat steel "paint ready" to match the home exterior
•Outside wall plate can be filled with your choice of insulation
![](/static/1d38861ed39c80a09d903b312760098f/02e1e/CVA-WPT06_CVA-WPT07_CVA-WPT08_web.jpg)

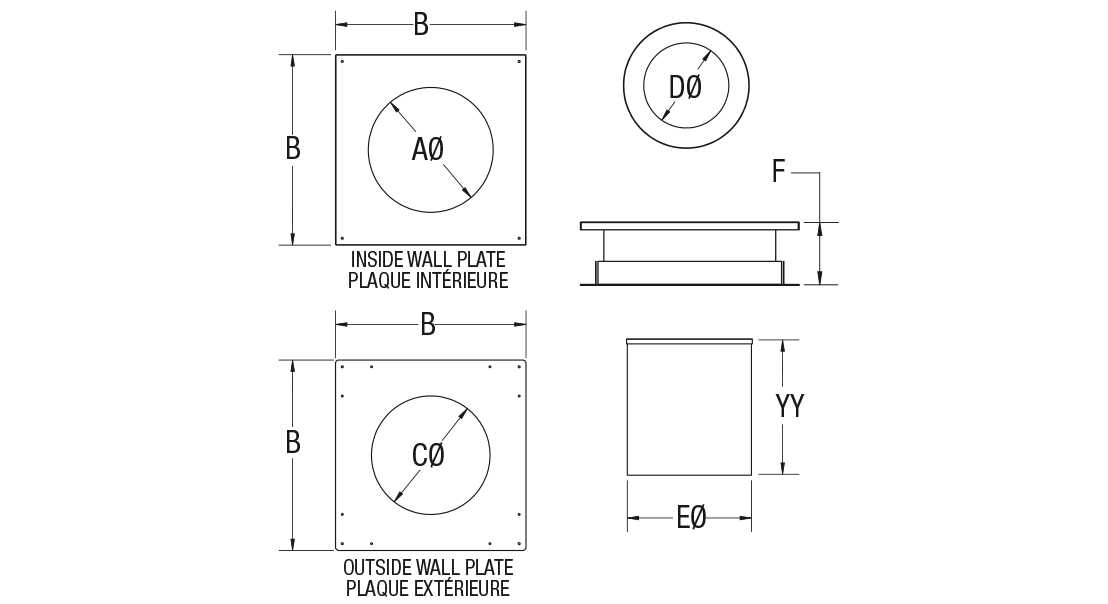

Dimensions
A | B | C | D | E | F |
---|---|---|---|---|---|
10.2" | 15" | 9.7" | 7.2" | 10.1" | 4" - 8" |
![](/static/c6bdb00e90587d8a6a7bf65ca966a1a0/efef4/CVA-WPT06_CVA-CWPT06_CVA-WPT07_CVA-WPT08.jpg)
