HEI350
VB00021

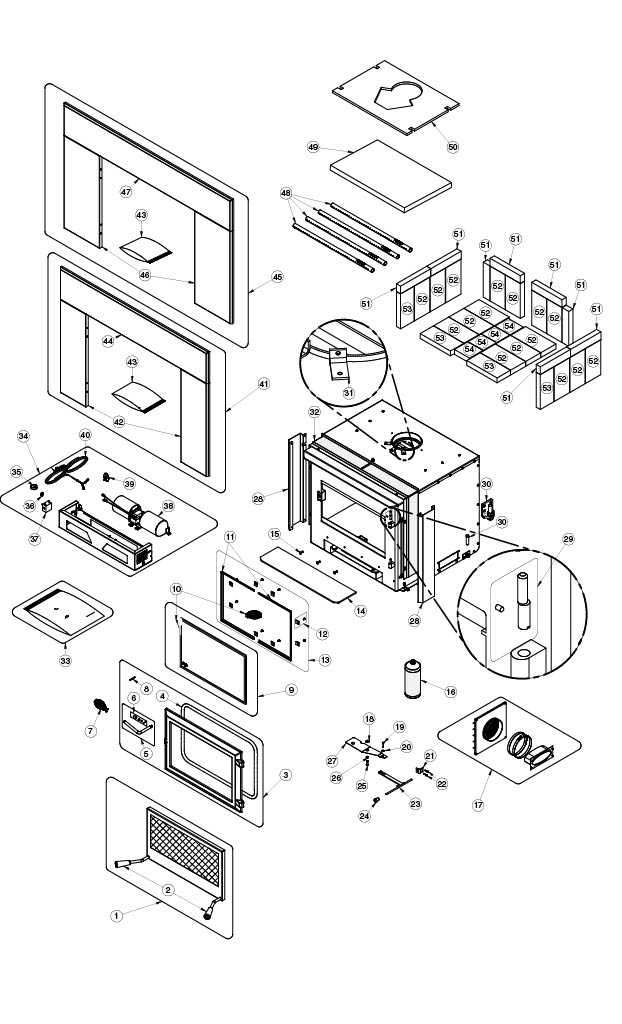

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | AC01281 RIGID FIRESCREEN 1 / appliance (sold individually) | CAD $190.00 | ||
| 2 | SE74166 HANDLE 30898 REPLACEMENT KIT 2 / appliance (sold individually) | CAD $25.00 | ||
| 3 | SE24366 CAST IRON DOOR WITH HANDLE AND GASKET 1 / appliance (sold individually) | CAD $235.00 | ||
| 4 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $25.00 | ||
| 5 | SE70697 HANDLE WITH LATCH KIT 1 / appliance (sold individually) | CAD $40.00 | ||
| 6 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | ||
| 7 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | ||
| 8 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | ||
| 9 | SE70978 19 9/16" x 12 1/8" GLASS WITH GASKET 1 / appliance (sold individually) | CAD $170.00 | ||
| 10 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | CAD $16.00 | ||
| 11 | PL70979 GLASS FRAME 2 / appliance (sold individually) | CAD $15.00 | ||
| 12 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | ||
| 13 | SE70988 GLASS FRAME KIT 1 / appliance (sold individually) | CAD $61.00 | ||
| 14 | SE70983 ASH SHELF ASSEMBLY 1 / appliance (sold individually) | -- | ||
| 15 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 3 / appliance (sold individually) | CAD $2.00 | ||
| 16 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $29.00 | ||
| 17 | AC01298 5"Ø FRESH AIR INTAKE KIT 1 / appliance (sold individually) | CAD $90.00 | ||
| 18 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | ||
| 19 | 30064 3/16" x 1" CLEVIS PIN 1 / appliance (sold individually) | CAD $2.00 | ||
| 20 | 30059 5/32" I⌀ PUSHNUT 1 / appliance (sold individually) | CAD $1.00 | ||
| 21 | PL65312 AIR CONTROL DAMPER GUIDE 1 / appliance (sold individually) | CAD $22.00 | ||
| 22 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 2 / appliance (sold individually) | CAD $1.00 | ||
| 23 | SE70920 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $15.00 | ||
| 24 | 30102 1/4" CAST IRON AIR CONTROL HANDLE 1 / appliance (sold individually) | CAD $20.00 | ||
| 25 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | CAD $1.00 | ||
| 26 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | ||
| 27 | PL70921 AIR CONTROL DAMPER 1 / appliance (sold individually) | CAD $8.00 | ||
| 28 | PL70981 RIGHT OR LEFT DECORATIVE SIDE PANEL 2 / appliance (sold individually) | -- | ||
| 29 | SE74167 DOOR HINGE REPLACEMENT KIT 1 / appliance (sold individually) | CAD $29.00 | ||
| 30 | 30337 SQUARE HEAD SET SCREW 1/2-13 x 1-3/4" 2 / appliance (sold individually) | CAD $5.00 | ||
| 31 | PL34052 LINER FIXATION BRACKET 3 / appliance (sold individually) | CAD $5.00 | ||
| 32 | PL70939 FACEPLATE EXTENSION 1 / appliance (sold individually) | CAD $65.00 | ||
| 33 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 34 | SE70952 BLOWER ASSEMBLY 1 / appliance (sold individually) | CAD $405.00 | ||
| 35 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | ||
| 36 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | ||
| 37 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | ||
| 38 | 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A 1 / appliance (sold individually) | CAD $250.00 | ||
| 39 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | ||
| 40 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | ||
| 41 | VBA1557 32" X 44" REGULAR FACEPLATE 1 / appliance (sold individually) | CAD $220.00 | ||
| 42 | PL70987 HEI350 32" X 44" SIDE PANEL 2 / appliance (sold individually) | -- | ||
| 43 | SE15097 FACEPLATE HARDWARE KIT 2 / appliance (sold individually) | CAD $25.00 | ||
| 44 | PL70988 HEI350 32" X 44" TOP FACEPLATE 1 / appliance (sold individually) | CAD $40.00 | ||
| 45 | VBA1558 34" X 50" LARGE FACEPLATE 1 / appliance (sold individually) | CAD $250.00 | ||
| 46 | PL70989 HEI350 34" X 50" SIDE PANEL 2 / appliance (sold individually) | CAD $35.00 | ||
| 47 | PL70990 HEI350 34" X 50" TOP FACEPLATE 1 / appliance (sold individually) | CAD $50.00 | ||
| 48 | PL70864 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | ||
| 49 | 21585 22" x 14" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $45.00 | ||
| 50 | 21564 C-CAST INSULATION TOP | 3.5 SERIE 1 / appliance (sold individually) | CAD $150.00 | ||
| 51 | PL36759 2" x 9" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | CAD $10.00 | ||
| 52 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 16 / appliance (sold individually) | CAD $10.00 | ||
| 53 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | ||
| 54 | 29004 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
