HE350
VB00005

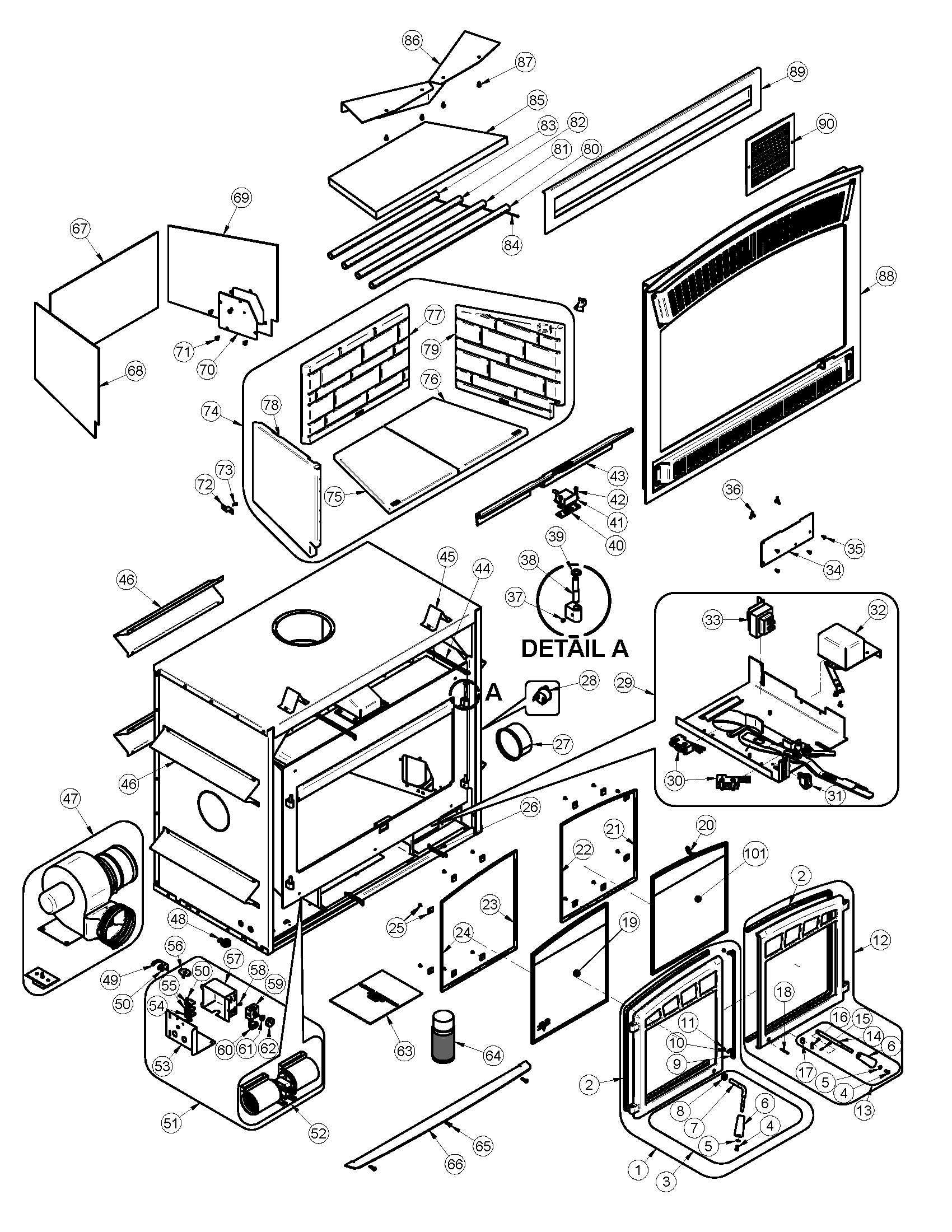

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Msrp per item* | Shipping date | |
|---|---|---|---|---|
| 1 | SE24140 LEFT DOOR FRAME WITH HANDLE AND GASKET 1 / appliance (sold individually) | CAD $450.00 | ||
| 2 | AC06500 SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $25.00 | ||
| 3 | SE68960 LEFT HANDLE AND LATCH KIT 1 / appliance (sold individually) | CAD $85.00 | ||
| 4 | 30025 BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX 2 / appliance (sold individually) | CAD $1.00 | ||
| 5 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 2 / appliance (sold individually) | CAD $1.00 | ||
| 6 | 30898 BLACK ROUND WOODEN HANDLE 2 / appliance (sold individually) | CAD $15.00 | ||
| 7 | PL68960 LEFT HANDLE DOOR 1 / appliance (sold individually) | CAD $75.00 | ||
| 8 | 30039 NUT 1/2-20 1 / appliance (sold individually) | CAD $1.00 | ||
| 9 | 40030 6 mm GASKET (PRICE FOR 1 LINEAR FOOT) 2 / appliance (sold individually) | CAD $5.00 | ||
| 10 | PL61410 GASKET RETAINER 2 / appliance (sold individually) | CAD $5.00 | ||
| 11 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | ||
| 12 | SE24141 RIGHT DOOR FRAME WITH HANDLE AND GASKET 1 / appliance (sold individually) | CAD $395.00 | ||
| 13 | SE68961 RIGHT HANDLE AND LATCH KIT 1 / appliance (sold individually) | CAD $85.00 | ||
| 14 | PL68961 RIGHT DOOR HANDLE ROD 1 / appliance (sold individually) | CAD $115.00 | ||
| 15 | 30062 SPRING PIN 3/32" x 1/2" 1 / appliance (sold individually) | CAD $2.00 | ||
| 16 | 30043 CLEVIS PIN 3/16" x 7/8'' 1 / appliance (sold individually) | CAD $5.00 | ||
| 17 | 8435-08 BLACK OXIDE LATCH MECHANISM BEARING 1 / appliance (sold individually) | CAD $12.00 | ||
| 18 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | ||
| 19 | SE23062 LEFT ARCHED GLASS WITH GASKET - 15 3/4"W X 17 3/4"H 1 / appliance (sold individually) | CAD $295.00 | ||
| 20 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | CAD $16.00 | ||
| 21 | PL68836 RIGHT GLASS FRAME 1 / appliance (sold individually) | CAD $10.00 | ||
| 22 | PL68837 RIGHT GLASS FRAME 1 / appliance (sold individually) | CAD $10.00 | ||
| 23 | PL68840 LEFT GLASS FRAME 1 / appliance (sold individually) | CAD $10.00 | ||
| 24 | PL68841 LEFT GLASS FRAME 1 / appliance (sold individually) | CAD $10.00 | ||
| 25 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | ||
| 26 | 30472 SPRING 1/2" OØ x 3"L 2 / appliance (sold individually) | CAD $10.00 | ||
| 27 | PL68915 ADAPTER 5" 1 / appliance (sold individually) | CAD $50.00 | ||
| 28 | 44191 THERMODISC 36T12 F275 1 / appliance (sold individually) | CAD $10.00 | ||
| 29 | SE68877 AIR CONTROL MECHANISM ASSEMBLY 1 / appliance (sold individually) | CAD $500.00 | ||
| 30 | 44190 LIMIT SWITCH 2 / appliance (sold individually) | CAD $35.00 | ||
| 32 | 51000 HONEYWELL 24V DAMPER MOTOR 1 / appliance (sold individually) | CAD $250.00 | ||
| 33 | 60208 TRANSFORMER 120 V/24 V 20 VA 1 / appliance (sold individually) | CAD $55.00 | ||
| 34 | PL68781 AIR INLET PLATE 1 / appliance (sold individually) | CAD $20.00 | ||
| 35 | 30131 BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX 4 / appliance (sold individually) | CAD $2.00 | ||
| 36 | 30485 WING NUT 1/4-20 x 1/2" ZINC PLATTED 2 / appliance (sold individually) | CAD $6.00 | ||
| 37 | 30117 BLACK SET SCREW #10-32 x 3/16" 2 / appliance (sold individually) | CAD $1.00 | ||
| 38 | 30586 HINGE PIN 2 / appliance (sold individually) | CAD $10.00 | ||
| 39 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 2 / appliance (sold individually) | CAD $1.00 | ||
| 40 | 21490 PILOT INSULATION 1 / appliance (sold individually) | CAD $5.00 | ||
| 41 | SE68758 PILOT ASSEMBLY 1 / appliance (sold individually) | CAD $35.00 | ||
| 42 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 1 / appliance (sold individually) | CAD $2.00 | ||
| 43 | PL68759 INNER ASH RETAINER 1 / appliance (sold individually) | CAD $70.00 | ||
| 44 | 30767 SPRING 1/2''Ø OUTSIDE X 8''L 1 / appliance (sold individually) | CAD $10.00 | ||
| 45 | PL60266 LONG TOP STANDOFF 2 / appliance (sold individually) | CAD $5.00 | ||
| 46 | PL68952 SIDE STANDOFF 6 / appliance (sold individually) | CAD $15.00 | ||
| 47 | VA4460 FORCED AIR KIT 1 / appliance (sold individually) | CAD $910.00 | ||
| 48 | 60201 CONNECTOR 1 SCREW 3/8" FOR BX WIRE 1 / appliance (sold individually) | CAD $5.00 | ||
| 49 | PL66523 THERMODISC SUPPORT 1 / appliance (sold individually) | CAD $5.00 | ||
| 50 | 30133 METAL SCREW #8 X 3/8" PAN QUADREX TYPE "A" ZINC 2 / appliance (sold individually) | CAD $1.00 | ||
| 51 | SE68951 WIRED ELECTRICAL PARTS WITH JUNCTION BOX 1 / appliance (sold individually) | CAD $395.00 | ||
| 52 | 44122 DOUBLE CAGE BLOWER 176 CFM (CLASS H) 1 / appliance (sold individually) | CAD $250.00 | ||
| 53 | PL68950 JUNCTION BOX COVER 1 / appliance (sold individually) | CAD $15.00 | ||
| 54 | 60204B TERMINAL BLOCK (END SECTION) 1 / appliance (sold individually) | CAD $10.00 | ||
| 55 | 60204A TERMINAL 3/8" SECTION 2 / appliance (sold individually) | CAD $15.00 | ||
| 56 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | ||
| 57 | PL68951 CONNECTOR BLOCK CASE 1 / appliance (sold individually) | CAD $15.00 | ||
| 58 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 1 / appliance (sold individually) | CAD $1.00 | ||
| 59 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | ||
| 60 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | CAD $10.00 | ||
| 61 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | ||
| 62 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | ||
| 63 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | ||
| 64 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $29.00 | ||
| 65 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 3 / appliance (sold individually) | CAD $1.00 | ||
| 66 | PL68839 DÉCORATIVE ASH LIP 1 / appliance (sold individually) | CAD $30.00 | ||
| 67 | 21463 REAR COMBUSTION CHAMBER INSULATION (0.51m2) 1 / appliance (sold individually) | CAD $20.00 | ||
| 68 | 21464 LEFT COMBUSTION CHAMBER INSULATION (0.51 m2) 1 / appliance (sold individually) | CAD $20.00 | ||
| 69 | 21465 RIGHT COMBUSTION CHAMBER INSULATION (0.51m2) 1 / appliance (sold individually) | CAD $20.00 | ||
| 70 | PL68873 THERMODISC ACCESS 1 / appliance (sold individually) | CAD $15.00 | ||
| 71 | 30084 NUT 1/4-20 x 1/2" GRADE 5 4 / appliance (sold individually) | CAD $2.00 | ||
| 72 | PL53145 REFRACTORY BRICK PANEL RETAINER 2 / appliance (sold individually) | CAD $10.00 | ||
| 73 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 2 / appliance (sold individually) | CAD $1.00 | ||
| 74 | AC02360 CLASSIC MOULDED BRICK PANELS 1 / appliance (sold individually) | CAD $750.00 | ||
| 75 | 22025 LEFT FLOOR REFRACTORY BRICK 1 / appliance (sold individually) | CAD $140.00 | ||
| 76 | 22026 RIGHT FLOOR REFRACTORY BRICK 1 / appliance (sold individually) | CAD $140.00 | ||
| 77 | 22027 REAR REFRACTORY BRICK PANEL 1 / appliance (sold individually) | CAD $175.00 | ||
| 78 | 22028 LEFT REFRACTORY BRICK PANEL 1 / appliance (sold individually) | CAD $145.00 | ||
| 79 | 22029 RIGHT REFRACTORY BRICK PANEL 1 / appliance (sold individually) | CAD $145.00 | ||
| 80 | PL68762 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $85.00 | ||
| 81 | PL68763 MIDDLE FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $85.00 | ||
| 82 | PL68764 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $85.00 | ||
| 83 | PL68765 REAR SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $85.00 | ||
| 84 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 4 / appliance (sold individually) | CAD $10.00 | ||
| 85 | 21265 20 3/8" x 27 1/2" x 13 3/4" x 1 1/4" C-CAST BAFFLE 1 / appliance (sold individually) | CAD $180.00 | ||
| 86 | PL68850 BAFFLE DEFLECTOR 1 / appliance (sold individually) | CAD $55.00 | ||
| 87 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 4 / appliance (sold individually) | CAD $1.00 | ||
| 88 | VBA1540 BLACK TRADITIONAL FACEPLATE 1 / appliance (sold individually) | CAD $900.00 | ||
| 89 | AC01378 WARM AIR CIRCULATION GRILLE MODERN 1 / appliance (sold individually) | CAD $350.00 | ||
| 90 | 30540 HOT AIR GRAVITY KIT GRILL 1 / appliance (sold individually) | CAD $75.00 | ||
| 91 | 60380 ELECTRIC WIRE DOUBLE BLACK SEW2 200°C 18 AWG 4" & 35" 1 / appliance (sold individually) | CAD $10.00 | ||
| 92 | 60381 ELECTRIC WIRE WHITE TEW 105°C 18 AWG 6" 1 / appliance (sold individually) | CAD $5.00 | ||
| 93 | 60379 ELECTRIC WIRE DOUBLE BLACK SEW2 200°C 18 AWG 16" & 35" 1 / appliance (sold individually) | CAD $10.00 | ||
| 94 | 60374 ELECTRIC WIRE WHITE SEW2 200°C 18 AWG 46" 3 / appliance (sold individually) | CAD $10.00 | ||
| 95 | 60375 ELECTRIC WIRE WHITE TEW 105°C 18 AWG 12.5" 1 / appliance (sold individually) | CAD $5.00 | ||
| 96 | 60376 ELECTRIC WIRE WHITE TEW 105°C 18 AWG 6.5" 1 / appliance (sold individually) | CAD $5.00 | ||
| 97 | 60377 ELECTRIC WIRE DOUBLE WHITE TEW 105°C 18 AWG 6" & 6" 1 / appliance (sold individually) | CAD $5.00 | ||
| 98 | 60378 ELECTRIC WIRE DOUBLE BLACK TEW 105°C 18 AWG 6" & 6" 1 / appliance (sold individually) | CAD $10.00 | ||
| 99 | 60278 ELECTRIC WIRE BLACK TEW 105 DEG C 18 AWG 6'' 1 / appliance (sold individually) | CAD $5.00 | ||
| 100 | 60291 ELECTRIC WIRE BLACK SEW2 200°C 18 AWG 12'' 2 / appliance (sold individually) | CAD $5.00 | ||
| 101 | SE23063 RIGHT ARCHED GLASS WITH GASKET - 15 3/4"W X 17 3/4"H 1 / appliance (sold individually) | CAD $295.00 |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
